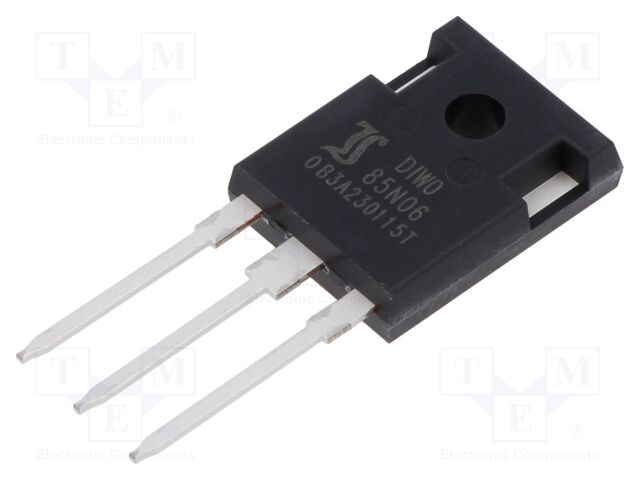

DIW085N06 DIOTEC SEMICONDUCTOR
Hersteller: DIOTEC SEMICONDUCTOR
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 65V; 60A; Idm: 340A; 240W; TO247-3
Mounting: THT
Kind of channel: enhancement
Drain-source voltage: 65V
Type of transistor: N-MOSFET
Gate-source voltage: ±20V
Kind of package: tube
Case: TO247-3
On-state resistance: 9.1mΩ
Pulsed drain current: 340A
Power dissipation: 240W
Gate charge: 80nC
Polarisation: unipolar
Drain current: 60A
Produktrezensionen
Produktbewertung abgeben
Technische Details DIW085N06 DIOTEC SEMICONDUCTOR
Description: MOSFET TO-247-3L N 65V 85A, Packaging: Bulk, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 85A (Tc), Rds On (Max) @ Id, Vgs: 9.1mOhm @ 40A, 10V, Power Dissipation (Max): 240W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: TO-247, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 65 V, Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 3704 pF @ 34 V.
Weitere Produktangebote DIW085N06
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
| DIW085N06 | Diotec Semiconductor |
Description: MOSFET TO-247-3L N 65V 85A Packaging: Bulk Package / Case: TO-247-3 Mounting Type: Through Hole Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 85A (Tc) Rds On (Max) @ Id, Vgs: 9.1mOhm @ 40A, 10V Power Dissipation (Max): 240W (Tc) Vgs(th) (Max) @ Id: 4V @ 250µA Supplier Device Package: TO-247 Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 65 V Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 3704 pF @ 34 V |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 450 Stücke Im Einkaufswagen Stück im Wert von UAH | |
 |
DIW085N06 | Diotec Semiconductor |
MOSFETs MOSFET, TO-247-3L, 65V, 85A, 150C, N |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 450 Stücke Im Einkaufswagen Stück im Wert von UAH |
| DIW085N06 |
|
Hersteller: Diotec Semiconductor
Description: MOSFET TO-247-3L N 65V 85A
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 85A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 40A, 10V
Power Dissipation (Max): 240W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 65 V
Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 3704 pF @ 34 V
Description: MOSFET TO-247-3L N 65V 85A
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 85A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 40A, 10V
Power Dissipation (Max): 240W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-247
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 65 V
Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 3704 pF @ 34 V
Produkt ist nicht verfügbar
Mindestbestellmenge: 450 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| DIW085N06 |
|
Hersteller: Diotec Semiconductor
MOSFETs MOSFET, TO-247-3L, 65V, 85A, 150C, N
MOSFETs MOSFET, TO-247-3L, 65V, 85A, 150C, N
Produkt ist nicht verfügbar
Mindestbestellmenge: 450 Stücke
Im Einkaufswagen
Stück im Wert von UAH
