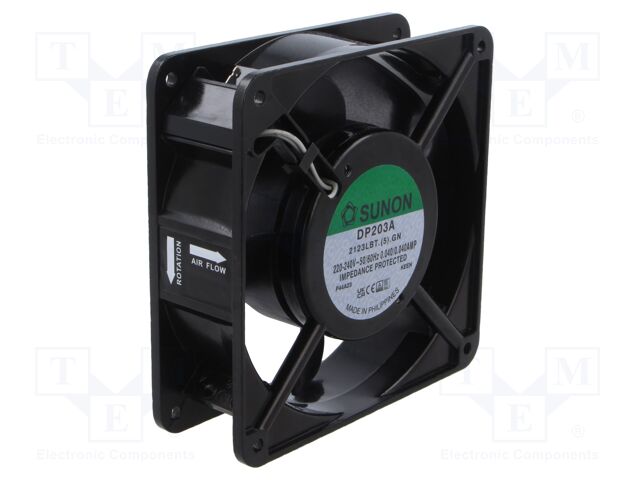

DP203A2123LBT.(5).GN SUNON
Hersteller: SUNON
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 120x120x38mm; 85m3/h; 26dBA; ball; 1650rpm
Leads: connectors
Operating temperature: -10...70°C
Leads dimensions: 2.8x0.3mm
Impeller material: thermoplastic
Flammability rating: UL94V-0
Current rating: 40mA
Fan dimensions: 120x120x38mm
Static pressure: 2mm H2O
Power consumption: 8W
Current and power consumption tolerance: ±15%
Noise level: 26dBA
Frequency: 50Hz
Fan efficiency: 85m3/h
Supply voltage: 230V AC
Rotational rate/speed: 1650rpm
Min. insulation resistance: 500MΩ
Type of fan: AC
Enclosure material: aluminium
Kind of fan: axial
Kind of Bearing: ball
Anzahl je Verpackung: 1 Stücke
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 120x120x38mm; 85m3/h; 26dBA; ball; 1650rpm
Leads: connectors
Operating temperature: -10...70°C
Leads dimensions: 2.8x0.3mm
Impeller material: thermoplastic
Flammability rating: UL94V-0
Current rating: 40mA
Fan dimensions: 120x120x38mm
Static pressure: 2mm H2O
Power consumption: 8W
Current and power consumption tolerance: ±15%
Noise level: 26dBA
Frequency: 50Hz
Fan efficiency: 85m3/h
Supply voltage: 230V AC
Rotational rate/speed: 1650rpm
Min. insulation resistance: 500MΩ
Type of fan: AC
Enclosure material: aluminium
Kind of fan: axial
Kind of Bearing: ball
Anzahl je Verpackung: 1 Stücke
auf Bestellung 463 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 16.86 EUR |
| 10+ | 15.06 EUR |
| 40+ | 13.77 EUR |
| 200+ | 12.87 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DP203A2123LBT.(5).GN SUNON
Category: AC230V Fans, Description: Fan: AC; axial; 230VAC; 120x120x38mm; 85m3/h; 26dBA; ball; 1650rpm, Leads: connectors, Operating temperature: -10...70°C, Leads dimensions: 2.8x0.3mm, Impeller material: thermoplastic, Flammability rating: UL94V-0, Current rating: 40mA, Fan dimensions: 120x120x38mm, Static pressure: 2mm H2O, Power consumption: 8W, Current and power consumption tolerance: ±15%, Noise level: 26dBA, Frequency: 50Hz, Fan efficiency: 85m3/h, Supply voltage: 230V AC, Rotational rate/speed: 1650rpm, Min. insulation resistance: 500MΩ, Type of fan: AC, Enclosure material: aluminium, Kind of fan: axial, Kind of Bearing: ball, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote DP203A2123LBT.(5).GN nach Preis ab 12.87 EUR bis 27.65 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DP203A2123LBT.(5).GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 120x120x38mm; 85m3/h; 26dBA; ball; 1650rpm Leads: connectors Operating temperature: -10...70°C Leads dimensions: 2.8x0.3mm Impeller material: thermoplastic Flammability rating: UL94V-0 Current rating: 40mA Fan dimensions: 120x120x38mm Static pressure: 2mm H2O Power consumption: 8W Current and power consumption tolerance: ±15% Noise level: 26dBA Frequency: 50Hz Fan efficiency: 85m3/h Supply voltage: 230V AC Rotational rate/speed: 1650rpm Min. insulation resistance: 500MΩ Type of fan: AC Enclosure material: aluminium Kind of fan: axial Kind of Bearing: ball |
auf Bestellung 463 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| DP203A-2123LBT.(5).GN | Hersteller : Sunon |
 0 |
auf Bestellung 579 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
 |
DP203A-2123LBT.(5).GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 119X38.5MM 220/240VAC Power (Watts): 8.00W Packaging: Bulk Voltage - Rated: 220 ~ 240VAC Size / Dimension: Square - 119mm L x 119mm H Bearing Type: Ball RPM: 1600 RPM Air Flow: 49.0 CFM (1.37m³/min) Width: 38.50mm Weight: 1.2 lbs (550 g) Termination: 2 Terminals Approval Agency: CE, TUV Fan Type: Tubeaxial Noise: 25.0dB(A) Static Pressure: 0.070 in H2O (17.4 Pa) Part Status: Active |
Produkt ist nicht verfügbar |
|||||||||||
 |
DP203A-2123LBT.(5).GN | Hersteller : Sunon |
AC Fans Axial Fan, 120x120x38mm, 220-240VAC, 0.08/0.07"H2O, Low Power Consumption |
Produkt ist nicht verfügbar |
