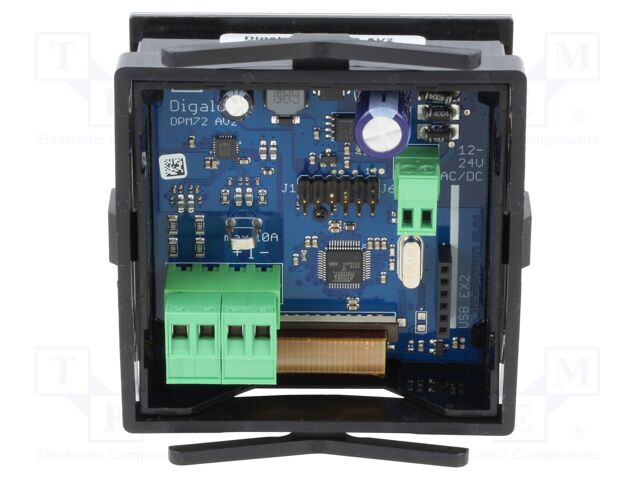

DPM72-AV2 TDE INSTRUMENTS

Category: Power Network Meters and Analyzers, Description: Meter: network parameters; on panel; digital,mounting; LCD, Type of meter: network parameters, Measuring instrument features: MIN/MAX function; programmable alarm thresholds, Kind of meter: digital; mounting, Kind of measurement: indirect with 5A current transformer, Mounting: on panel, IP rating: IP65 from the front, Kind of display used: LCD, Backlight colour: white, Operating temperature: 0...50°C, AC current measuring range: 0...10A, DC current measuring range: 0...10A, DC voltage measuring range: 0...300V, AC voltage measuring range: 0...300V, Mounting hole diameter: 68x68mm, Dimensions (W x H x D): 72x72mm, Frequency measuring accuracy: ±0.1Hz, DC current measuring accuracy: ±1%, DC voltage measuring accuracy: ±1%, AC current measuring accuracy: ±1%, AC voltage measuring accuracy: ±1%, Frequency measuring range: 10...1000Hz, Supply voltage: 12...24V AC; 12...24V DC, Display resolution: 192x160, Anzahl je Verpackung: 1 Stücke.
