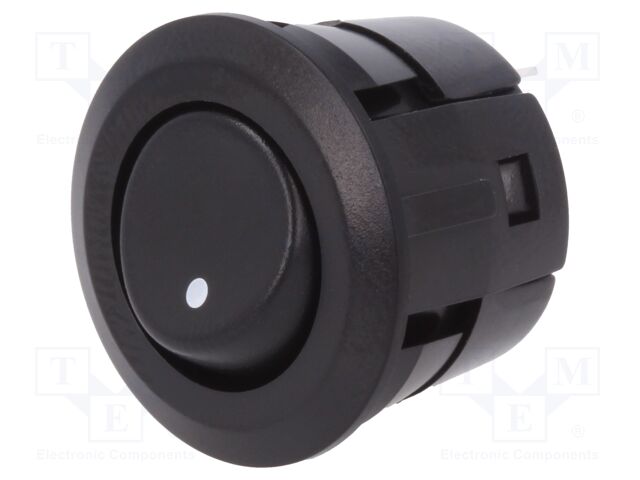

DS059K-WD-K MIYAMA
Hersteller: MIYAMA
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 3A/250VAC; black; DS-059; Body: black
Mounting: on panel; push-in
Mounting hole dimensions: Ø20.4mm
Manufacturer series: DS-059
Button shape: round
Type of switch: ROCKER
Body colour: black
Actuator colour: black
AC contacts rating @R: 3A / 250V AC
Operating temperature: -10...55°C
Contacts configuration: SPST
Stable positions number: 2
Leads: for soldering
Button marking: •
Switching method: ON-OFF
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 20mΩ
Illumination: none
Number of positions: 2
Panel thickness: 1...2.5mm
AC test voltage: 1.5kV
| Anzahl | Privatkunde |
|---|---|
| 17+ | 5.02 EUR |
| 19+ | 4.64 EUR |
| 21+ | 4.2 EUR |
| 100+ | 3.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DS059K-WD-K MIYAMA
Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; ON-OFF; 3A/250VAC; black; DS-059; Body: black, Mounting: on panel; push-in, Mounting hole dimensions: Ø20.4mm, Manufacturer series: DS-059, Button shape: round, Type of switch: ROCKER, Body colour: black, Actuator colour: black, AC contacts rating @R: 3A / 250V AC, Operating temperature: -10...55°C, Contacts configuration: SPST, Stable positions number: 2, Leads: for soldering, Button marking: •, Switching method: ON-OFF, Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 20mΩ, Illumination: none, Number of positions: 2, Panel thickness: 1...2.5mm, AC test voltage: 1.5kV.
