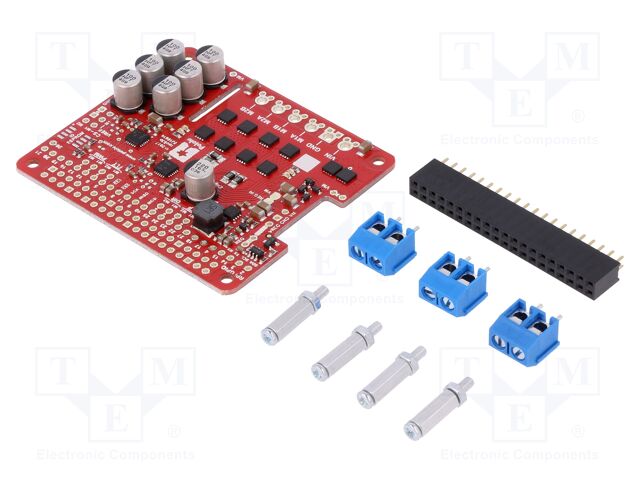

DUAL G2 HP MOTOR DRIVER 24V14 RPI POLOLU
Hersteller: POLOLU
Category: Motor Control Modules
Description: DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; 6.5÷36V; Ch: 2
Additional functions: current sensor; integrated switching step-down regulator 5V (2,5A); LED indicators; short-circuit protection; under voltage protection
Information: product is not a working device, but only component
Caution!: Version with soldered pin headers!
Board dimensions: 65x56mm
Number of channels: 2
Motor input voltage: 6.5...36V
Continuous output current per channel: 14A
Maximum current: 40A
Interface: analog; PWM; TTL
Max. frequency: 100kHz
Application - series/manufacturer: Raspberry Pi
Kit contents: module
Kind of module: shield
Type of robotics module: DC-motor driver
Manufacturer series: DUAL G2
Anzahl je Verpackung: 1 Stücke
Category: Motor Control Modules
Description: DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; 6.5÷36V; Ch: 2
Additional functions: current sensor; integrated switching step-down regulator 5V (2,5A); LED indicators; short-circuit protection; under voltage protection
Information: product is not a working device, but only component
Caution!: Version with soldered pin headers!
Board dimensions: 65x56mm
Number of channels: 2
Motor input voltage: 6.5...36V
Continuous output current per channel: 14A
Maximum current: 40A
Interface: analog; PWM; TTL
Max. frequency: 100kHz
Application - series/manufacturer: Raspberry Pi
Kit contents: module
Kind of module: shield
Type of robotics module: DC-motor driver
Manufacturer series: DUAL G2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 86.34 EUR |
