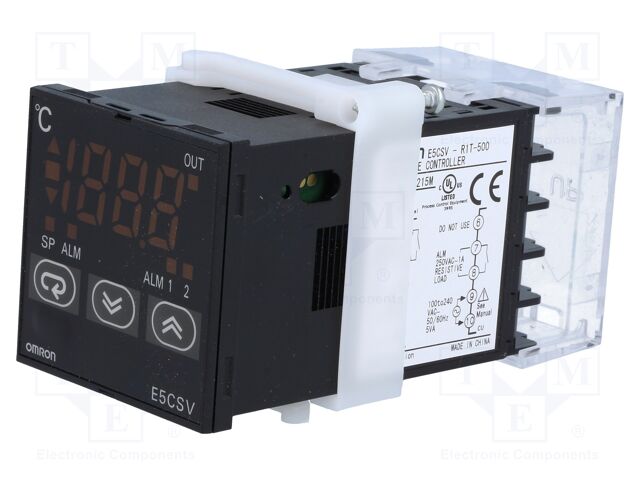

E5CSV-R1T-500 100-240AC OMRON

Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel, Mounting: on panel, Operating temperature: -10...55°C, Manufacturer series: E5CSV, Kind of temperature sensor: Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple R; thermocouple T; thermocouple U, Type of module: regulator, Controlled parameter: temperature, Controlled parameter range: -1999...9999, The programming method: DIP switches; foil keypad, Regulation for output 1: AUTOTUNING; ON-OFF; PID, Additional functions: heating or cooling control; LED status indicator; output 1 - operational output; output 2 - operational output;, Output 2 electrical parameters: 250V AC / 3A, Output 1 electrical parameters: 250V AC / 3A, Display parameters: 3,5 digit, Kind of display used: LED, Kind of output 1: SPST-NO, Kind of output 2: SPST-NO, Display height 1: 13.5mm, IP rating: IP66 (from the front), Input 1 properties: RTD; thermocouple, Supply voltage: 100...240V AC, Mounting hole diameter: 46x46mm, Body dimensions: 48x48x78mm, Anzahl je Verpackung: 1 Stücke.
