Produkte > LUMEL > EA17N E42200000000
EA17N E42200000000
EA17N E42200000000
EA17N E42200000000EA17N E42200000000

EA17N E42200000000 LUMEL

EB16_EA16_EA17_EA19_EA12_data_sheet.pdf
Hersteller: LUMEL
Category: Ammeters

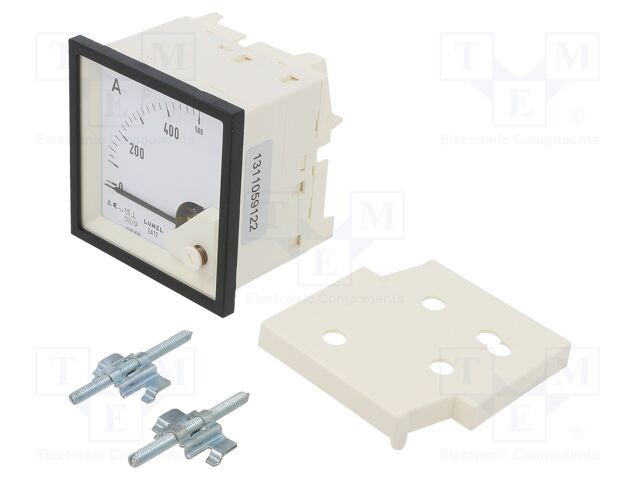

Description: Ammeter; on panel; I AC: 0÷500A; True RMS; Class: 1.5; 40÷72Hz; 600V
Mounting: for DIN rail mounting (optional); on panel
Manufacturer series: EA17
Standard equipment: mounting holder x2
Related items: ATS-300
Scale length: 63mm
Scale features: working position 90°
Kind of meter: analogue; mounting
True effective value measurement: True RMS
Kind of measurement: indirect with 5A current transformer
Max. voltage: 0.6kV
Accuracy class: 1.5
Dimensions (W x H x D): 72x72mm
Type of meter: ammeter
Frequency: 40...72Hz
IP rating: IP52
Measurement: AC current
AC current measuring range: 0...500A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details EA17N E42200000000 LUMEL

Category: Ammeters, Description: Ammeter; on panel; I AC: 0÷500A; True RMS; Class: 1.5; 40÷72Hz; 600V, Mounting: for DIN rail mounting (optional); on panel, Manufacturer series: EA17, Standard equipment: mounting holder x2, Related items: ATS-300, Scale length: 63mm, Scale features: working position 90°, Kind of meter: analogue; mounting, True effective value measurement: True RMS, Kind of measurement: indirect with 5A current transformer, Max. voltage: 0.6kV, Accuracy class: 1.5, Dimensions (W x H x D): 72x72mm, Type of meter: ammeter, Frequency: 40...72Hz, IP rating: IP52, Measurement: AC current, AC current measuring range: 0...500A.
