Produkte > BITNER > EB0251
EB0251

EB0251 BITNER


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9AB6689AAF15A0D3&compId=EB250-EN.pdf?ci_sign=04f19700a1ee8c8f73bdc9828c09272b56a0a487 Hersteller: BITNER
Category: Serial Bus Cables

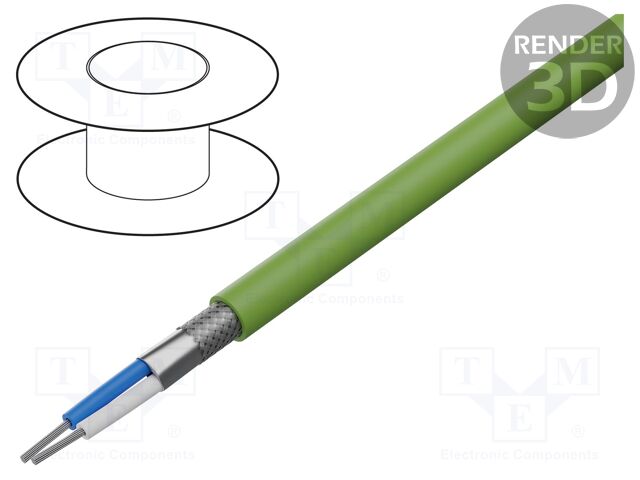

Description: Wire; BiTsensor PE (St) CH; 2x2x0.22mm2; stranded; Cu; LSZH; green
Type of wire: data transmission
Wire insulation material: LSZH
Insulation colour: green
Kind of core: Cu; tinned
Kind of wire: BiTsensor PE (St) CH
Shield structure: Al foil; shielded twofold; tinned copper braid
Cable features: low smoke density; twisted pair conductors
Number of cores: 4
No. of pairs: 2
Core marking: colours without colour repetition
Cable application: data transmission; indoor; industrial applications; RS485
Cable external diameter: 7.1mm
Core structure: stranded
Earth core: none
CPR standard: B2ca
Core section: 0.22mm2
Kind of material: flame retardant; halogen free; no flame propagation
Ground: tinned copper strand
Cable structure: 2x2x0.22mm2
Rated voltage: 300V
Operating temperature: -40...80°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 301 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
20+3.73 EUR
27+2.67 EUR
29+2.53 EUR
100+2.49 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details EB0251 BITNER

Category: Serial Bus Cables, Description: Wire; BiTsensor PE (St) CH; 2x2x0.22mm2; stranded; Cu; LSZH; green, Type of wire: data transmission, Wire insulation material: LSZH, Insulation colour: green, Kind of core: Cu; tinned, Kind of wire: BiTsensor PE (St) CH, Shield structure: Al foil; shielded twofold; tinned copper braid, Cable features: low smoke density; twisted pair conductors, Number of cores: 4, No. of pairs: 2, Core marking: colours without colour repetition, Cable application: data transmission; indoor; industrial applications; RS485, Cable external diameter: 7.1mm, Core structure: stranded, Earth core: none, CPR standard: B2ca, Core section: 0.22mm2, Kind of material: flame retardant; halogen free; no flame propagation, Ground: tinned copper strand, Cable structure: 2x2x0.22mm2, Rated voltage: 300V, Operating temperature: -40...80°C, Anzahl je Verpackung: 1 Stücke.
