EB5A-02-B ADAM TECH
Hersteller: ADAM TECHCategory: Pluggable terminal blocks

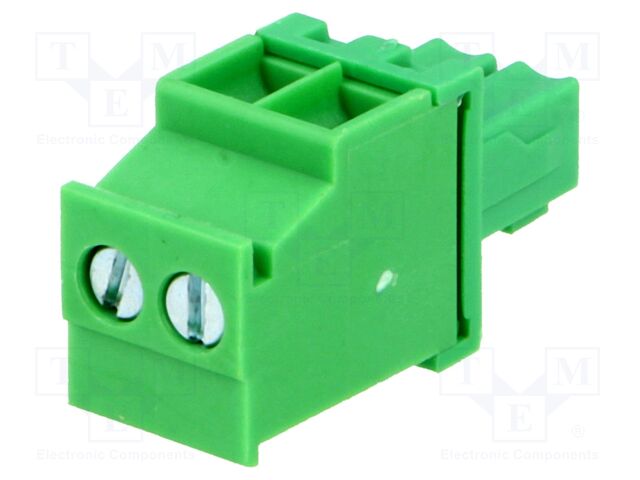

Description: Connector: pluggable terminal block; plug; female; 8A; 300V; green
Type of connector: pluggable terminal block
Connector: plug
Current rating: 8A
Rated voltage: 300V
Spatial orientation: angled
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: nickel plated
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Connector pinout layout: 1x2
Contacts pitch: 3.81mm
Number of ways: 2
Operating temperature: -40...105°C
Conform to the norm: UL
Wire cross-section: 1mm2
Wire size: 28AWG...16AWG
Locking system: latch
Kind of connector: female
Number of terminals: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 369 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 108+ | 0.66 EUR |
| 129+ | 0.56 EUR |
| 194+ | 0.37 EUR |
| 205+ | 0.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EB5A-02-B ADAM TECH
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 8A; 300V; green, Type of connector: pluggable terminal block, Connector: plug, Current rating: 8A, Rated voltage: 300V, Spatial orientation: angled, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: nickel plated, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Connector pinout layout: 1x2, Contacts pitch: 3.81mm, Number of ways: 2, Operating temperature: -40...105°C, Conform to the norm: UL, Wire cross-section: 1mm2, Wire size: 28AWG...16AWG, Locking system: latch, Kind of connector: female, Number of terminals: 2, Anzahl je Verpackung: 1 Stücke.
