EBAG-03-C

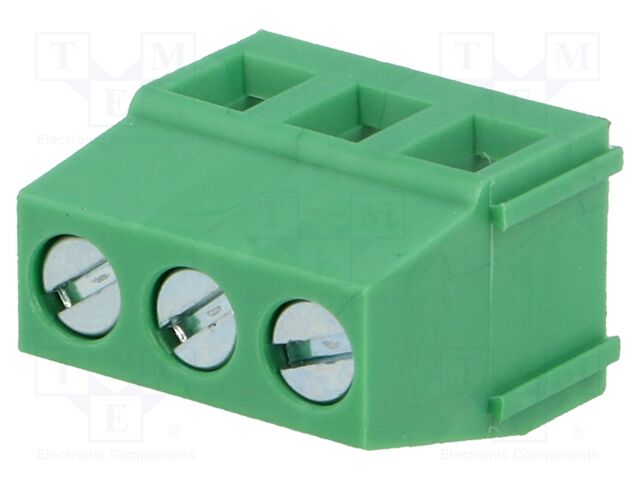

EBAG-03-C ADAM TECH

pVersion=0046&contRep=ZT&docId=005056AB752F1ED5B9D78DAEFC43F1BF&compId=EBAG-XX-C.pdf?ci_sign=b174121c33cd6f7f3f2afa4b830454c24f3f6ec9 Hersteller: ADAM TECH
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 16A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: cage clamp; screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: green
Body material: thermoplastic
Contacts pitch: 5mm
Number of ways: 3
Connectors features: assembling possibility
Current rating: 16A
Connector pinout layout: 1x3
Conform to the norm: UL
Wire cross-section: 2.5mm2
Wire size: 22AWG...12AWG
Operating temperature: -40...105°C
Flammability rating: UL94V-0
Rated voltage: 300V
Height: 14.1mm
Length: 15mm
Depth: 10.2mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3930 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
177+0.41 EUR
208+0.34 EUR
295+0.24 EUR
313+0.23 EUR
Mindestbestellmenge: 177
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details EBAG-03-C ADAM TECH

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 16A; 300V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: cage clamp; screw terminal; THT, Contact material: brass, Contact plating: tinned, Colour: green, Body material: thermoplastic, Contacts pitch: 5mm, Number of ways: 3, Connectors features: assembling possibility, Current rating: 16A, Connector pinout layout: 1x3, Conform to the norm: UL, Wire cross-section: 2.5mm2, Wire size: 22AWG...12AWG, Operating temperature: -40...105°C, Flammability rating: UL94V-0, Rated voltage: 300V, Height: 14.1mm, Length: 15mm, Depth: 10.2mm, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote EBAG-03-C nach Preis ab 0.23 EUR bis 1.92 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
EBAG-03-C EBAG-03-C Hersteller : ADAM TECH pVersion=0046&contRep=ZT&docId=005056AB752F1ED5B9D78DAEFC43F1BF&compId=EBAG-XX-C.pdf?ci_sign=b174121c33cd6f7f3f2afa4b830454c24f3f6ec9 Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 16A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: cage clamp; screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: green
Body material: thermoplastic
Contacts pitch: 5mm
Number of ways: 3
Connectors features: assembling possibility
Current rating: 16A
Connector pinout layout: 1x3
Conform to the norm: UL
Wire cross-section: 2.5mm2
Wire size: 22AWG...12AWG
Operating temperature: -40...105°C
Flammability rating: UL94V-0
Rated voltage: 300V
Height: 14.1mm
Length: 15mm
Depth: 10.2mm
auf Bestellung 3930 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
177+0.41 EUR
208+0.34 EUR
295+0.24 EUR
313+0.23 EUR
Mindestbestellmenge: 177
Im Einkaufswagen  Stück im Wert von  UAH
EBAG-03-C EBAG-03-C Hersteller : Adam Tech ebag-xx-c-data-sheet.pdf Description: EURO BLOCK 3P
Features: Interlocking (Side)
Packaging: Bulk
Color: Green
Mounting Type: Through Hole
Wire Gauge: 12-22 AWG
Pitch: 0.197" (5.00mm)
Mating Orientation: Horizontal with Board
Positions Per Level: 3
Wire Termination: Screw - Rising Cage Clamp
Part Status: Active
Current: 16 A
Number of Levels: 1
Voltage: 300 V
auf Bestellung 355 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.92 EUR
15+1.20 EUR
25+1.03 EUR
50+0.92 EUR
100+0.90 EUR
250+0.77 EUR
Mindestbestellmenge: 10
