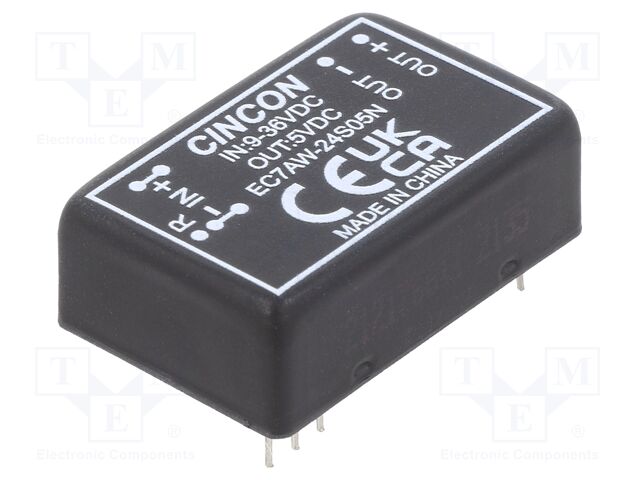

EC7AW-24S05N CINCON
Hersteller: CINCON
Category: DC/DC Converters
Description: Converter: DC/DC; 10W; Uin: 9÷36VDC; Uout: 5VDC; Iout: 2000mA; DIP24
Type of converter: DC/DC
Power: 10W
Input voltage: 9...36V DC
Output voltage: 5V DC
Output current: 2A
Mounting: THT
Manufacturer series: EC7AW
Body dimensions: 31.8x20.3x10.2mm
Efficiency: 85.5%
Operating temperature: -40...85°C
Switching frequency: 530kHz
Insulation voltage: 3kV DC
Number of outputs: 1
Case: DIP24
| Anzahl | Privatkunde |
|---|---|
| 2+ | 45.54 EUR |
| 5+ | 43.39 EUR |
| 50+ | 39.58 EUR |
| 100+ | 36.96 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EC7AW-24S05N CINCON
Description: DC-DC CONVERTER, Approval Agency: CE, Voltage - Input (Max): 36V, Applications: ITE (Commercial), Operating Temperature: -40°C ~ 105°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm), Package / Case: 24-DIP Module, 8 Leads, Features: Adjustable Output, Baseplate, Remote On/Off, Packaging: Tube, Standard Number: 62368-1, Voltage - Isolation: 3 kV, Number of Outputs: 1, Power (Watts): 10 W, Part Status: Active, Control Features: Enable, Active Low, Voltage - Output 1: 5V, Voltage - Input (Min): 9V, Current - Output (Max): 2A, Efficiency: 86%.
Weitere Produktangebote EC7AW-24S05N nach Preis ab 48.6 EUR bis 49.36 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EC7AW-24S05N | Cincon Electronics Co. LTD |
Description: DC-DC CONVERTER Approval Agency: CE Voltage - Input (Max): 36V Applications: ITE (Commercial) Operating Temperature: -40°C ~ 105°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) Package / Case: 24-DIP Module, 8 Leads Features: Adjustable Output, Baseplate, Remote On/Off Packaging: Tube Standard Number: 62368-1 Voltage - Isolation: 3 kV Number of Outputs: 1 Power (Watts): 10 W Part Status: Active Control Features: Enable, Active Low Voltage - Output 1: 5V Voltage - Input (Min): 9V Current - Output (Max): 2A Efficiency: 86% |
auf Bestellung 16 Stücke: Lieferzeit 10-14 Tag (e) |
|
| EC7AW-24S05N |
|
Hersteller: Cincon Electronics Co. LTD
Description: DC-DC CONVERTER
Approval Agency: CE
Voltage - Input (Max): 36V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 105°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package / Case: 24-DIP Module, 8 Leads
Features: Adjustable Output, Baseplate, Remote On/Off
Packaging: Tube
Standard Number: 62368-1
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 10 W
Part Status: Active
Control Features: Enable, Active Low
Voltage - Output 1: 5V
Voltage - Input (Min): 9V
Current - Output (Max): 2A
Efficiency: 86%
Description: DC-DC CONVERTER
Approval Agency: CE
Voltage - Input (Max): 36V
Applications: ITE (Commercial)
Operating Temperature: -40°C ~ 105°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package / Case: 24-DIP Module, 8 Leads
Features: Adjustable Output, Baseplate, Remote On/Off
Packaging: Tube
Standard Number: 62368-1
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 10 W
Part Status: Active
Control Features: Enable, Active Low
Voltage - Output 1: 5V
Voltage - Input (Min): 9V
Current - Output (Max): 2A
Efficiency: 86%
auf Bestellung 16 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 49.36 EUR |
| 5+ | 48.98 EUR |
| 10+ | 48.6 EUR |
