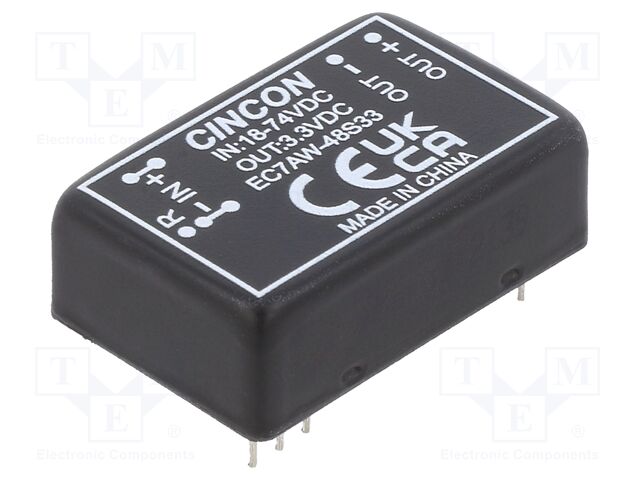

EC7AW-48S33 CINCON
Hersteller: CINCONCategory: DC/DC Converters
Description: Converter: DC/DC; 10W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 2000mA
Type of converter: DC/DC
Power: 10W
Input voltage: 18...75V DC
Output voltage: 3.3V DC
Output current: 2A
Case: DIP24
Manufacturer series: EC7AW
Body dimensions: 31.8x20.3x10.2mm
Efficiency: 80.5%
Operating temperature: -40...85°C
Switching frequency: 530kHz
Insulation voltage: 3kV DC
Number of outputs: 1
Mounting: THT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 50 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 23.97 EUR |
| 4+ | 22.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EC7AW-48S33 CINCON
Description: DC-DC CONVERTER, Packaging: Tube, Features: Adjustable Output, Baseplate, Remote On/Off, Package / Case: 24-DIP Module, 8 Leads, Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 105°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 74V, Approval Agency: CE, Efficiency: 81.5%, Current - Output (Max): 2A, Voltage - Input (Min): 18V, Voltage - Output 1: 3.3V, Control Features: Enable, Active High, Part Status: Active, Power (Watts): 6.6 W, Number of Outputs: 1, Voltage - Isolation: 3 kV, Standard Number: 62368-1.
Weitere Produktangebote EC7AW-48S33 nach Preis ab 22.69 EUR bis 41.92 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
EC7AW-48S33 | Hersteller : CINCON |
Category: DC/DC Converters Description: Converter: DC/DC; 10W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 2000mA Type of converter: DC/DC Power: 10W Input voltage: 18...75V DC Output voltage: 3.3V DC Output current: 2A Case: DIP24 Manufacturer series: EC7AW Body dimensions: 31.8x20.3x10.2mm Efficiency: 80.5% Operating temperature: -40...85°C Switching frequency: 530kHz Insulation voltage: 3kV DC Number of outputs: 1 Mounting: THT |
auf Bestellung 50 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
EC7AW-48S33 | Hersteller : Cincon Electronics Co. LTD |
Description: DC-DC CONVERTER Packaging: Tube Features: Adjustable Output, Baseplate, Remote On/Off Package / Case: 24-DIP Module, 8 Leads Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 105°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 74V Approval Agency: CE Efficiency: 81.5% Current - Output (Max): 2A Voltage - Input (Min): 18V Voltage - Output 1: 3.3V Control Features: Enable, Active High Part Status: Active Power (Watts): 6.6 W Number of Outputs: 1 Voltage - Isolation: 3 kV Standard Number: 62368-1 |
auf Bestellung 77 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| EC7AW-48S33 | Hersteller : Cincon Electronics Co |
10 Watt 4 to 1 Input Isolated DC to DC CONVERTER |
Produkt ist nicht verfügbar |
