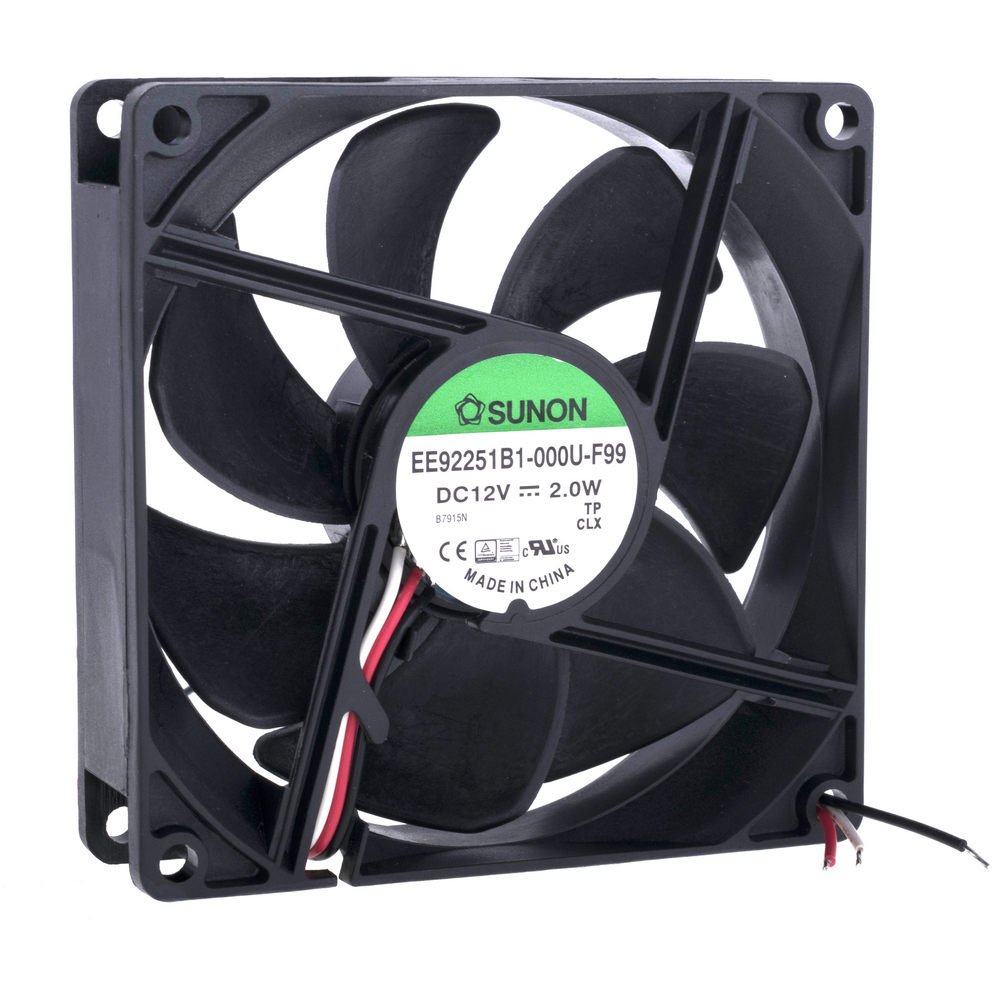

EE92251B1-F99 Sunon
Abmessungen, mm: 92x92x25
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 87,55
Leistung, Watt: 2
Lärm, dB: 34
Rotationsgeschwindigkeit, r/min: 3000
Beschreibung: Lager roll-on-
ZCODE: 8414 51 00 90
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 12.75 EUR |
Technische Details EE92251B1-F99 Sunon
Axiallüfter Ventilator Lüfter Sunon 92x92x25 mm 12/24VDC Axial 34dB 87,5m³/h 3000U/min
Gemeinsame Daten
Abmessungen: 92x92x25 mm
Lager:
Gleitlager
Luftstrom 87,55m3/h
Drehzahl 3000(+/-
15%) U/min
Geräuschpegel 34 dBA
Statische Druck 0,15mm
H2O
Isolationswiderstand
500MOhm
Temperaturbereich: -10...+70 °C
Anschluss 2
Leitungen 300mm
Gewicht 94 g
Variable Daten
12V
Spannung nominal 12VDC
Betriebsspannungsbereich
4,5...13,8V
Leistungsaufnahme 2 W
Nennstrom 165 mA
Artikelnummer:
12V
Spannung nominal 12 VDC
Betriebsspannungsbereich 4,5...13,8 V
Leistungsaufnahme 2 W
Nennstrom
Artikelnummer: 26929
12V
Spannung nominal 12 VDC
Betriebsspannungsbereich 4,5...13,8V
Leistungsaufnahme 2 W
Nennstrom
Artikelnummer: 15915
24V EE92252S1-A99
Spannung nominal 24VDC
Betriebsspannungsbereich
10...27,6V
Leistungsaufnahm, min 2,1W
Nennstrom, min 87mA
Artikelnummer: 27219
Verwandte Produkte EE92251B1-F99 Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 287 Stück
50 Stück - stock Köln
237 Stück - lieferbar in 3-4 Wochen |
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 81 Stück
80 Stück - stock Köln
1 Stück - lieferbar in 3-4 Wochen |
|
Weitere Produktangebote EE92251B1-F99 nach Preis ab 8.02 EUR bis 16.43 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EE92251B1-000U-F99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 87.48m3/h; 34dBA; ball; 3000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 92x92x25mm Power consumption: 2W Current rating: 0.165A Fan efficiency: 87.48m3/h Noise level: 34dBA Kind of Bearing: ball Signal output: R type Rotational rate/speed: 3000rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Anzahl je Verpackung: 1 Stücke |
auf Bestellung 316 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
EE92251B1-000U-F99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 87.48m3/h; 34dBA; ball; 3000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 92x92x25mm Power consumption: 2W Current rating: 0.165A Fan efficiency: 87.48m3/h Noise level: 34dBA Kind of Bearing: ball Signal output: R type Rotational rate/speed: 3000rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC |
auf Bestellung 316 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
EE92251B1-000U-F99 | Hersteller : Sunon | EE92251B1-000U-F99 |
auf Bestellung 327 Stücke: Lieferzeit 14-21 Tag (e) |
|
Mit diesem Produkt kaufen
Вентилятор 92x92x25, 12V, (PF92251V1-A99-A) Produktcode: 144652 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 92x92x25 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 126,75 м³/год.
Leistung, Watt: 4,44 Вт
Lärm, dB: 45,5 дБ
Rotationsgeschwindigkeit, r/min: 4500 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Вентилятор 92x92x25, 12V, (EF92251S1-A99-A) Produktcode: 143196 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 92x92x25 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 87,04 м³/год.
Leistung, Watt: 1,84 Вт
Lärm, dB: 34 дБ
Rotationsgeschwindigkeit, r/min: 3000 об/хв
Beschreibung: Підшипник ковзання "втулка"
AOYUE Int936A Regelbare Lötstation Lötkolben 60W 200-480°С PTC Heizelement ESDS Produktcode: 110390 |
Lötgeräte, Lötmaterial > Löttechnik. Lötstationen
Kategorie: Lötstation
Beschreibung: Regelbare Lötstation Lötkolben 60W 200-480°С PTC Heizelement ESDS
Spannung: 220 V
Leistung: 60 W
11 Stück - lieferbar in 3-4 Wochen
Anzahl | Preis ohne MwSt |
---|---|
1+ | 88.88 EUR |

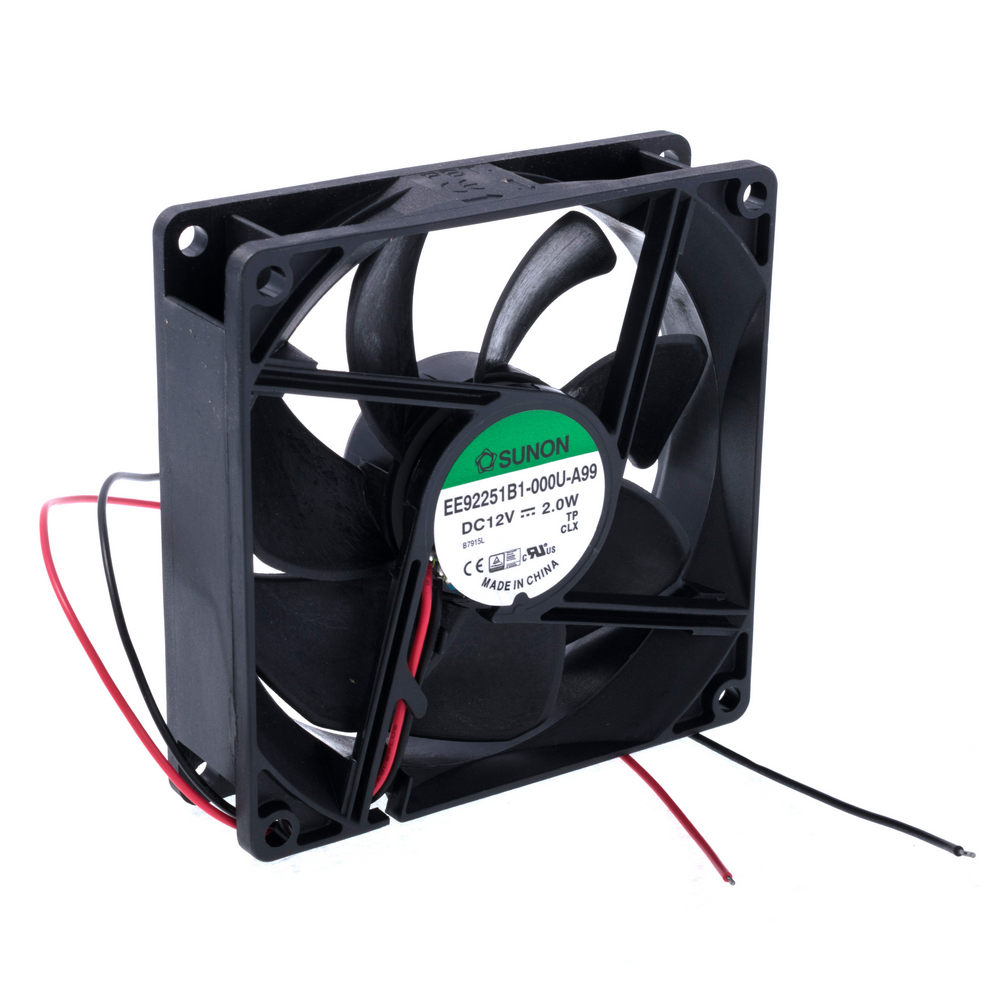

EE92251B1-A99 Produktcode: 34539 |
