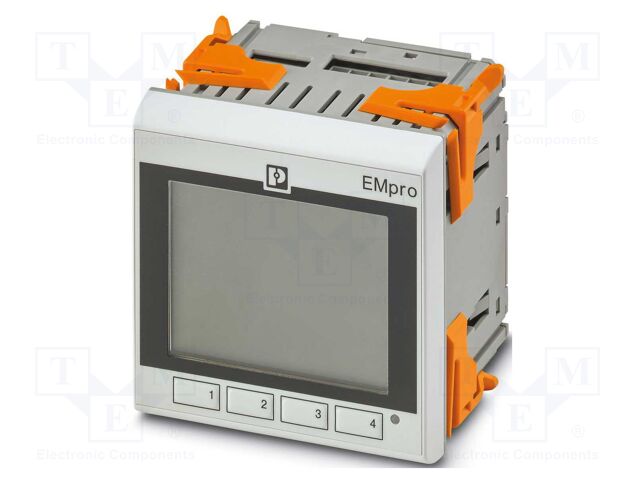

EEM-MA770 PHOENIX CONTACT
Hersteller: PHOENIX CONTACT
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; front fixing,horizontal; LCD; EMpro
Type of meter: network parameters
Kind of measurement: direct
Mounting: front fixing; horizontal
Kind of meter: digital; mounting
Kind of display used: LCD
Measurement: AC current; active electric energy; AC voltage; reactive electric energy
Manufacturer series: EMpro
Kind of network: three-phase
AC voltage measuring range: 20...690V
AC current measuring range: 1A...20kA
Input current: 1A; 5A
Operating frequency: 50...60Hz
AC voltage measuring accuracy: ±0.2%
AC current measuring accuracy: ±0.2%
True effective value measurement: True RMS
Interface: RJ45
Communictions protocol: Modbus TCP
IP rating: IP20; IP54 (from the front)
Conform to the norm: CAT II 600V; CAT III 300V
Supply voltage: 100...400V AC; 150...250V DC
Dimensions (W x H x D): 96x96x73.3mm
Active power measuring accuracy: ±0.5%
Net weight: 412g
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; front fixing,horizontal; LCD; EMpro
Type of meter: network parameters
Kind of measurement: direct
Mounting: front fixing; horizontal
Kind of meter: digital; mounting
Kind of display used: LCD
Measurement: AC current; active electric energy; AC voltage; reactive electric energy
Manufacturer series: EMpro
Kind of network: three-phase
AC voltage measuring range: 20...690V
AC current measuring range: 1A...20kA
Input current: 1A; 5A
Operating frequency: 50...60Hz
AC voltage measuring accuracy: ±0.2%
AC current measuring accuracy: ±0.2%
True effective value measurement: True RMS
Interface: RJ45
Communictions protocol: Modbus TCP
IP rating: IP20; IP54 (from the front)
Conform to the norm: CAT II 600V; CAT III 300V
Supply voltage: 100...400V AC; 150...250V DC
Dimensions (W x H x D): 96x96x73.3mm
Active power measuring accuracy: ±0.5%
Net weight: 412g
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 429.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EEM-MA770 PHOENIX CONTACT
Category: Power Network Meters and Analyzers, Description: Meter: network parameters; front fixing,horizontal; LCD; EMpro, Type of meter: network parameters, Kind of measurement: direct, Mounting: front fixing; horizontal, Kind of meter: digital; mounting, Kind of display used: LCD, Measurement: AC current; active electric energy; AC voltage; reactive electric energy, Manufacturer series: EMpro, Kind of network: three-phase, AC voltage measuring range: 20...690V, AC current measuring range: 1A...20kA, Input current: 1A; 5A, Operating frequency: 50...60Hz, AC voltage measuring accuracy: ±0.2%, AC current measuring accuracy: ±0.2%, True effective value measurement: True RMS, Interface: RJ45, Communictions protocol: Modbus TCP, IP rating: IP20; IP54 (from the front), Conform to the norm: CAT II 600V; CAT III 300V, Supply voltage: 100...400V AC; 150...250V DC, Dimensions (W x H x D): 96x96x73.3mm, Active power measuring accuracy: ±0.5%, Net weight: 412g.
