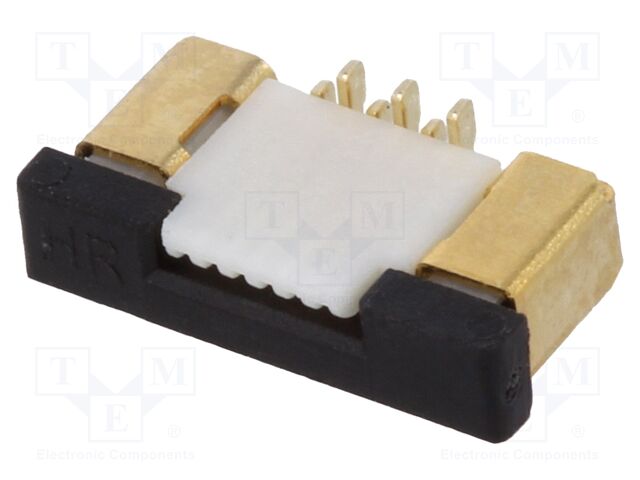

F0500WV-S-06PNLNG1G00L JOINT TECH
Hersteller: JOINT TECH
Category: Connectors FFC/FPC 0.5mm
Description: Connector: FFC/FPC; SMT; 0.5A; 50V; PIN: 6; 0.5mm; vertical; ZIF; 30mΩ
Type of connector: FFC/FPC
Electrical mounting: SMT
Number of pins: 6
Contact material: phosphor bronze
Tape pitch: 0.5mm
Spatial orientation: vertical
Connector variant: ZIF
Operating temperature: -25...85°C
Max. voltage: 50V
Maximum current: 0.5A
Flammability rating: UL94V-0
Locking system: FlipLock
Max. contact resistance:: 30mΩ
| Anzahl | Privatkunde |
|---|---|
| 84+ | 1.02 EUR |
| 151+ | 0.56 EUR |
| 224+ | 0.38 EUR |
| 1000+ | 0.26 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details F0500WV-S-06PNLNG1G00L JOINT TECH
Category: Connectors FFC/FPC 0.5mm, Description: Connector: FFC/FPC; SMT; 0.5A; 50V; PIN: 6; 0.5mm; vertical; ZIF; 30mΩ, Type of connector: FFC/FPC, Electrical mounting: SMT, Number of pins: 6, Contact material: phosphor bronze, Tape pitch: 0.5mm, Spatial orientation: vertical, Connector variant: ZIF, Operating temperature: -25...85°C, Max. voltage: 50V, Maximum current: 0.5A, Flammability rating: UL94V-0, Locking system: FlipLock, Max. contact resistance:: 30mΩ.
