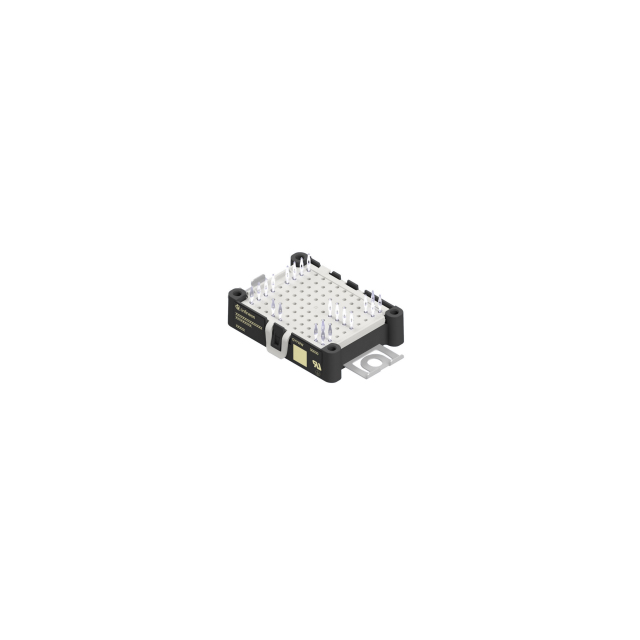

F413MXTR12C1M2H11BPSA1 Infineon Technologies
Hersteller: Infineon Technologies
MOSFET Modules EasyPACK 1C CoolSiC MOSFET M2 .XT, fourpack module 1200 V, 13 mOhm with NTC temperature sensor and high current PressFIT contact technology
Produktrezensionen
Produktbewertung abgeben
Technische Details F413MXTR12C1M2H11BPSA1 Infineon Technologies
Description: F413MXTR12C1M2H11BPSA1, Packaging: Tray, Package / Case: Module, Mounting Type: Chassis Mount, Configuration: 4 N-Channel, Operating Temperature: -40°C ~ 175°C (TJ), Technology: Silicon Carbide (SiC), Power - Max: 20mW, Drain to Source Voltage (Vdss): 1200V (1.2kV), Current - Continuous Drain (Id) @ 25°C: 60A, Input Capacitance (Ciss) (Max) @ Vds: 4800pF @ 800V, Rds On (Max) @ Id, Vgs: 12.5mOhm @ 50A, 18V, Gate Charge (Qg) (Max) @ Vgs: 158nC @ 18V, Vgs(th) (Max) @ Id: 5.15V @ 22mA.
Weitere Produktangebote F413MXTR12C1M2H11BPSA1
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
F413MXTR12C1M2H11BPSA1 | Hersteller : Infineon Technologies |
Description: F413MXTR12C1M2H11BPSA1 Packaging: Tray Package / Case: Module Mounting Type: Chassis Mount Configuration: 4 N-Channel Operating Temperature: -40°C ~ 175°C (TJ) Technology: Silicon Carbide (SiC) Power - Max: 20mW Drain to Source Voltage (Vdss): 1200V (1.2kV) Current - Continuous Drain (Id) @ 25°C: 60A Input Capacitance (Ciss) (Max) @ Vds: 4800pF @ 800V Rds On (Max) @ Id, Vgs: 12.5mOhm @ 50A, 18V Gate Charge (Qg) (Max) @ Vgs: 158nC @ 18V Vgs(th) (Max) @ Id: 5.15V @ 22mA |
Produkt ist nicht verfügbar |
