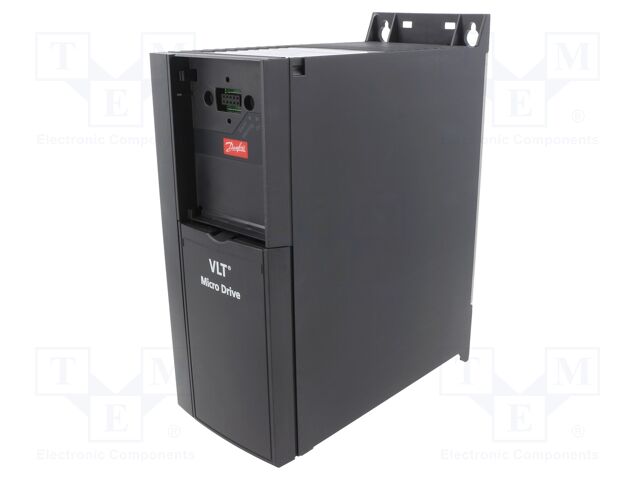

FC-051P5K5T4E20H3BXCXXXSXXX DANFOSS
Hersteller: DANFOSSCategory: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Mounting: for DIN rail mounting; for wall mounting
Operating temperature: 0...50°C
Number of inputs: 6
Type of module: vector inverter
Number of analog inputs: 1
Number of analog outputs: 2
The programming method: keypad; PC
Body dimensions: 239x90x194mm
Protection: anti-overload OPP; short circuit protection SCP
Output frequency: 0...400Hz
Voltage between phases (for three phase system): 3 x 380...480V AC
Inverter output voltage: 3 x 400V AC
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Max motor power: 5.5kW
Input 1 properties: current analog
Current rating: 12A
Electrical connection: screw terminals
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 1260.60 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FC-051P5K5T4E20H3BXCXXXSXXX DANFOSS
Category: Three Phase Inverters, Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6, Mounting: for DIN rail mounting; for wall mounting, Operating temperature: 0...50°C, Number of inputs: 6, Type of module: vector inverter, Number of analog inputs: 1, Number of analog outputs: 2, The programming method: keypad; PC, Body dimensions: 239x90x194mm, Protection: anti-overload OPP; short circuit protection SCP, Output frequency: 0...400Hz, Voltage between phases (for three phase system): 3 x 380...480V AC, Inverter output voltage: 3 x 400V AC, Manufacturer series: VLT Micro Drive FC 51, Current output: 0/4mA...20mA, Voltage output: 0...10V, Max motor power: 5.5kW, Input 1 properties: current analog, Current rating: 12A, Electrical connection: screw terminals, Anzahl je Verpackung: 1 Stücke.
