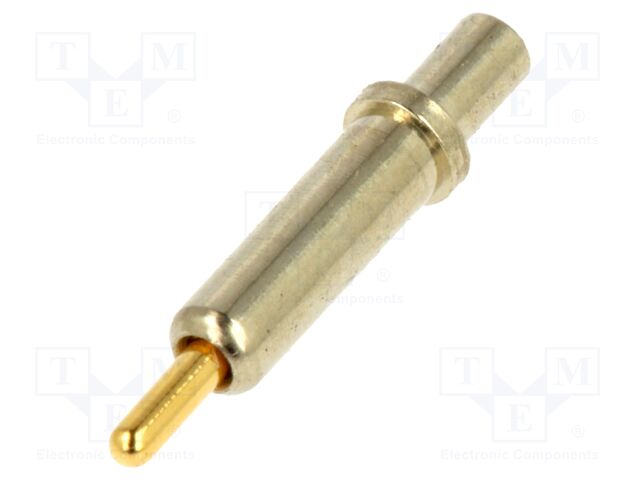

FK-441 FIXTEST
Hersteller: FIXTEST
Category: Test Probes
Description: Test acces: test needle; -55÷250°C; 3A; Ø: 0.75mm; 0.8N; soldered
Length: 10.52mm
Contact plating: gold-plated
Maksimum spring compression: 2.25mm
Mounting: soldered
Contact material: copper alloy
Current rating: 3A
Operational spring compression: 1.52mm
Operating temperature: -55...250°C
Tip diameter: 0.75mm
Max. contact resistance:: 100mΩ
Spring compression force: 0.8N
Type of test accessories: test needle
| Anzahl | Privatkunde |
|---|---|
| 51+ | 1.69 EUR |
| 57+ | 1.51 EUR |
| 61+ | 1.42 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FK-441 FIXTEST
Category: Test Probes, Description: Test acces: test needle; -55÷250°C; 3A; Ø: 0.75mm; 0.8N; soldered, Length: 10.52mm, Contact plating: gold-plated, Maksimum spring compression: 2.25mm, Mounting: soldered, Contact material: copper alloy, Current rating: 3A, Operational spring compression: 1.52mm, Operating temperature: -55...250°C, Tip diameter: 0.75mm, Max. contact resistance:: 100mΩ, Spring compression force: 0.8N, Type of test accessories: test needle.
