FLUKE 1673FC SCH/FEV300
Hersteller: FLUKE
Category: PV and EVSE Testers and Meters
Description: Meter: EV Charging Station Analyzer; VAC: 600V; Display: LCD

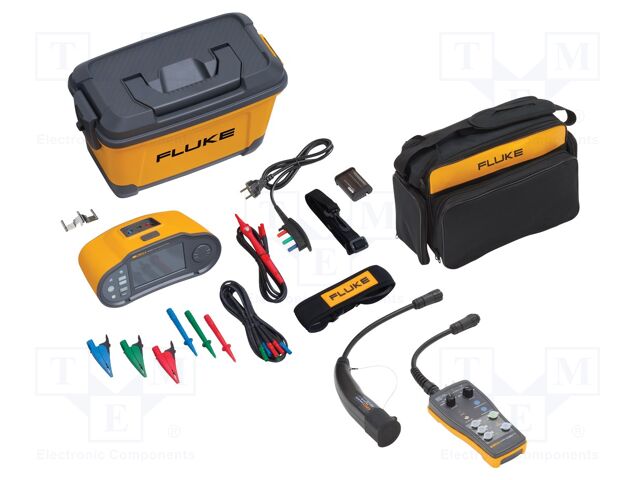

Standard equipment: 3 crocodile clips; carrying strap; hard case; mains adapter; test adapter FLK-FEV300/TY2; test mains cable; test probe FLK-TP165X; test probe x3; TL-L1 red test lead; TL-L2 blue test lead; TL-L2 green test lead
Interface: USB C
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V 2500mAh x1
Measurement: AC voltage; earthing resistance; frequency; insulation resistance; RCD tripping current; RCD tripping time
Type of meter: EV Charging Station Analyzer
Measuring instrument features: checks conductors polarization
Connectors for the country: Europe
RCD test: general purpose
Kind of display used: LCD
Power supply: rechargeable battery Li-Ion 10,8V 2500mAh x1
Illumination: yes
Touchpad: yes
Body dimensions: 262.5x141.9x119.3mm
Test voltage: 50V; 100V; 250V; 500V; 1kV
Earthing resistance measuring range: 200Ω; 2kΩ
AC voltage measuring range: 600V
Insulation resistance measuring ranges: 10kΩ...20MΩ; 10kΩ...50MΩ; 0.1...200MΩ; 20...100MΩ; 20...200MΩ; 200...500MΩ; 200MΩ...1GΩ
Category: PV and EVSE Testers and Meters
Description: Meter: EV Charging Station Analyzer; VAC: 600V; Display: LCD
Standard equipment: 3 crocodile clips; carrying strap; hard case; mains adapter; test adapter FLK-FEV300/TY2; test mains cable; test probe FLK-TP165X; test probe x3; TL-L1 red test lead; TL-L2 blue test lead; TL-L2 green test lead
Interface: USB C
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V 2500mAh x1
Measurement: AC voltage; earthing resistance; frequency; insulation resistance; RCD tripping current; RCD tripping time
Type of meter: EV Charging Station Analyzer
Measuring instrument features: checks conductors polarization
Connectors for the country: Europe
RCD test: general purpose
Kind of display used: LCD
Power supply: rechargeable battery Li-Ion 10,8V 2500mAh x1
Illumination: yes
Touchpad: yes
Body dimensions: 262.5x141.9x119.3mm
Test voltage: 50V; 100V; 250V; 500V; 1kV
Earthing resistance measuring range: 200Ω; 2kΩ
AC voltage measuring range: 600V
Insulation resistance measuring ranges: 10kΩ...20MΩ; 10kΩ...50MΩ; 0.1...200MΩ; 20...100MΩ; 20...200MΩ; 200...500MΩ; 200MΩ...1GΩ
