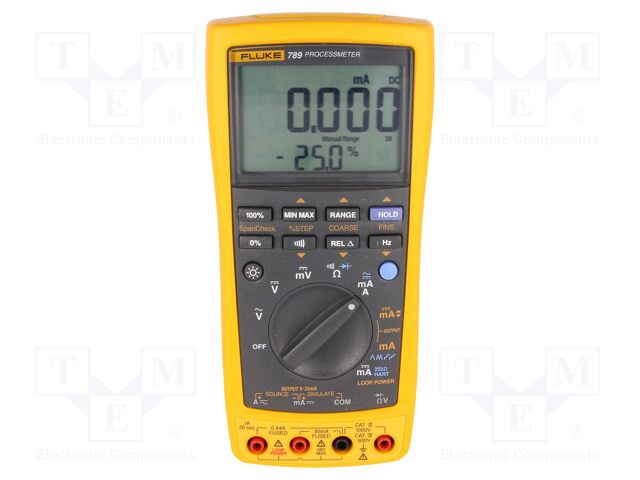

FLUKE-789/E
Hersteller: FLUKECategory: Calibrators
Description: Meter: multimeter calibrator; Diode test: 0.3mA@600mV
Interface: IrDA
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010; EN 61243-3:2010
Dimensions: 203x100x50mm
Related items: POM-5900A/POM; POM-6173A; POM-7519A
Standard equipment: crocodile clips FLK-AC72; FLK-TL75 test leads
Measuring instrument features: 0% or 100% of signal value (4mA, 20mA) source function; 24V loop supply voltage; automatic and manual setting of step function; HART range with loop and built-in 250Ω resistor; HOLD function; impact resistant holster; MIN/MAX/MEAN/REL function; simultaneous readout in mA and % of range; source DC current / calibrate loop current, source/simulate
Type of meter: multimeter calibrator
Optional equipment: 240A AC/DC FLK-I200S current clamp probe; 400A AC/DC FLK-I410 current clamp probe; crocodile clip FLK-AC89; crocodile clip FLK-AC220; crocodile clip FLK-AC283; crocodile clip FLK-AC285; FLK-C510 - soft cover; FLK-FVF-SC2 software; FLK-TL225 set
Continuity test: acoustic indication; <100Ω
Measurement: AC current; AC voltage; DC current; DC voltage; frequency; resistance
AC current measuring range: 0.001mA...1A
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 400kΩ; 4MΩ; 40MΩ
DC current measuring range: 1µA...30mA; 1A
DC voltage measuring range: 1...400mV; 4V; 40V; 400V; 1kV
AC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
Frequency measuring range: 10mHz...199.99Hz; 1999.9Hz; 19.99kHz
Diode test: 0.3mA @600mV
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Software: Fluke Connect (FLK-IR3000FC)
Frequency measuring accuracy: ±(0.005%+1 digit)
AC current measuring accuracy: ±(1% + 2 digit)
DC voltage measuring accuracy: ±(0.1% + 1 digit)
DC current measuring accuracy: ±(0.2% + 2 digit)
AC voltage measuring accuracy: ±(1.2% + 4 digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
Kind of display used: LCD
Power supply: battery LR6 AA 1,5V x4
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 2237.01 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FLUKE-789/E FLUKE
Category: Calibrators, Description: Meter: multimeter calibrator; Diode test: 0.3mA@600mV, Interface: IrDA, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010; EN 61243-3:2010, Dimensions: 203x100x50mm, Related items: POM-5900A/POM; POM-6173A; POM-7519A, Standard equipment: crocodile clips FLK-AC72; FLK-TL75 test leads, Measuring instrument features: 0% or 100% of signal value (4mA, 20mA) source function; 24V loop supply voltage; automatic and manual setting of step function; HART range with loop and built-in 250Ω resistor; HOLD function; impact resistant holster; MIN/MAX/MEAN/REL function; simultaneous readout in mA and % of range; source DC current / calibrate loop current, source/simulate, Type of meter: multimeter calibrator, Optional equipment: 240A AC/DC FLK-I200S current clamp probe; 400A AC/DC FLK-I410 current clamp probe; crocodile clip FLK-AC89; crocodile clip FLK-AC220; crocodile clip FLK-AC283; crocodile clip FLK-AC285; FLK-C510 - soft cover; FLK-FVF-SC2 software; FLK-TL225 set, Continuity test: acoustic indication; .
Weitere Produktangebote FLUKE-789/E
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
FLUKE 789/E | Hersteller : FLUKE |
Description: FLUKE - FLUKE 789/E - Digitalmultimeter, Schleifenkalibrator, TRMS, automatische/manuelle Bereichswahl tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 40Mohm Messwert Gleichstrom, max.: 1A rohsCompliant: TBA hazardous: false rohsPhthalatesCompliant: TBA usEccn: EAR99 Schritte: - Herstellergewährleistung: 3 Jahre euEccn: NLR Anzahl der Stellen: - DMM-Messverfahren: Echteffektivwert DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Durchgang, Diode, Frequenz, Widerstand, Temperatur Produktpalette: - productTraceability: No Messwert Wechselstrom, max.: 1A Bereichswahl: Automatisch, manuell SVHC: No SVHC (15-Jun-2015) |
auf Bestellung 8 Stücke: Lieferzeit 14-21 Tag (e) |
