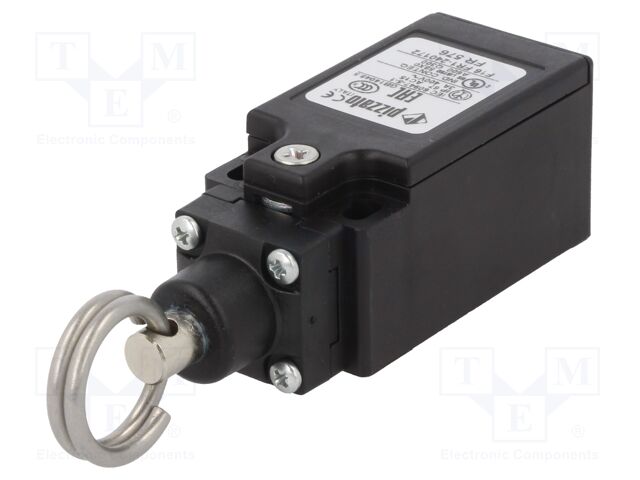

FR 576 PIZZATO ELETTRICA
Hersteller: PIZZATO ELETTRICA
Category: Limit Switches
Description: Limit switch; ring; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5
Type of sensor: limit switch
Output configuration: NO + NC
Connection: PG13,5
IP rating: IP67
Body dimensions: 51.5x30.8x30.8mm
Operating temperature: -25...80°C
Body material: plastic
Switches features: snap action contacts
Contact current max.: 10A
Switched voltage: max. 250V DC; max. 500V AC
Kind of actuator: ring
Manufacturer series: FR
Mounting holes pitch: 20...22mm
DC contacts rating @R: 6A / 24V DC
AC contacts rating @R: 6A / 250V AC
Number of mounting holes: 2
| Anzahl | Preis |
|---|---|
| 4+ | 19.09 EUR |
| 5+ | 17.98 EUR |
| 10+ | 16.75 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FR 576 PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; ring; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5, Type of sensor: limit switch, Output configuration: NO + NC, Connection: PG13,5, IP rating: IP67, Body dimensions: 51.5x30.8x30.8mm, Operating temperature: -25...80°C, Body material: plastic, Switches features: snap action contacts, Contact current max.: 10A, Switched voltage: max. 250V DC; max. 500V AC, Kind of actuator: ring, Manufacturer series: FR, Mounting holes pitch: 20...22mm, DC contacts rating @R: 6A / 24V DC, AC contacts rating @R: 6A / 250V AC, Number of mounting holes: 2.
