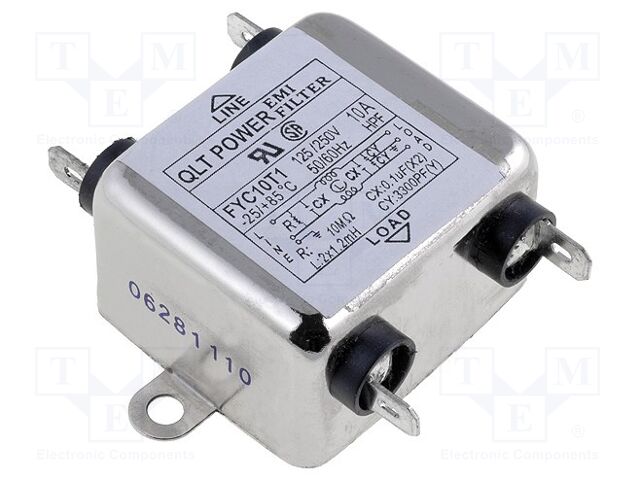

FYC10T1 QLT POWER
Hersteller: QLT POWER
Category: Suppression filters - others
Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 1.2mH; 10MΩ
Type of filter: anti-interference
Operating voltage: 250V AC
Capacitance Cx: 0.1µF
Capacitance Cy: 3.3nF
Max. operating current: 10A
Leads: connectors
Leads dimensions: 6.3x0.8mm
Operating temperature: -25...85°C
Inductance of individual winding: 1.2mH
Leakage current: 0.8mA
Panel cutout diameter: 5mm
Body dimensions: 70.7x50x28.5mm
Mounting holes pitch: 60mm
Resistance: 10MΩ
AC test voltage: 1.8kV
Min. insulation resistance: 0.1GΩ
Filter features: body dimensions with terminals
Manufacturer series: FYC
| Anzahl | Privatkunde |
|---|---|
| 6+ | 15.04 EUR |
| 8+ | 11.36 EUR |
| 9+ | 10.28 EUR |
| 18+ | 9.73 EUR |
| 36+ | 9.45 EUR |
| 90+ | 9.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FYC10T1 QLT POWER
Category: Suppression filters - others, Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 1.2mH; 10MΩ, Type of filter: anti-interference, Operating voltage: 250V AC, Capacitance Cx: 0.1µF, Capacitance Cy: 3.3nF, Max. operating current: 10A, Leads: connectors, Leads dimensions: 6.3x0.8mm, Operating temperature: -25...85°C, Inductance of individual winding: 1.2mH, Leakage current: 0.8mA, Panel cutout diameter: 5mm, Body dimensions: 70.7x50x28.5mm, Mounting holes pitch: 60mm, Resistance: 10MΩ, AC test voltage: 1.8kV, Min. insulation resistance: 0.1GΩ, Filter features: body dimensions with terminals, Manufacturer series: FYC.
