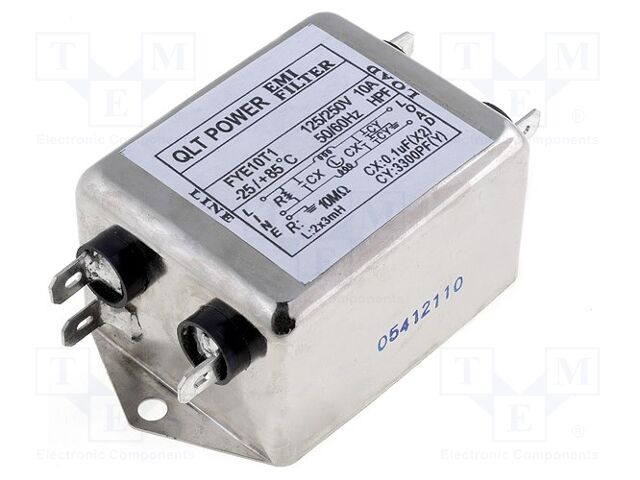

FYE10T1 QLT POWER
Hersteller: QLT POWERCategory: Suppression filters - others
Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 3mH; 10MΩ
Operating temperature: -25...85°C
Capacitance Cy: 3.3nF
Capacitance Cx: 0.1µF
Leakage current: 0.8mA
Inductance of individual winding: 3mH
Resistance: 10MΩ
Panel cutout diameter: 5mm
Leads dimensions: 6.3x0.8mm
Body dimensions: 89x51.5x37mm
Mounting holes pitch: 75mm
Max. operating current: 10A
Operating voltage: 250V AC
AC test voltage: 1.8kV
Manufacturer series: FYE
Min. insulation resistance: 0.1GΩ
Type of filter: anti-interference
Filter features: body dimensions with terminals
Leads: connectors
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 71.5 EUR |
| 2+ | 35.75 EUR |
| 5+ | 14.3 EUR |
| 96+ | 10.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FYE10T1 QLT POWER
Category: Suppression filters - others, Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 3mH; 10MΩ, Operating temperature: -25...85°C, Capacitance Cy: 3.3nF, Capacitance Cx: 0.1µF, Leakage current: 0.8mA, Inductance of individual winding: 3mH, Resistance: 10MΩ, Panel cutout diameter: 5mm, Leads dimensions: 6.3x0.8mm, Body dimensions: 89x51.5x37mm, Mounting holes pitch: 75mm, Max. operating current: 10A, Operating voltage: 250V AC, AC test voltage: 1.8kV, Manufacturer series: FYE, Min. insulation resistance: 0.1GΩ, Type of filter: anti-interference, Filter features: body dimensions with terminals, Leads: connectors, Anzahl je Verpackung: 1 Stücke.
