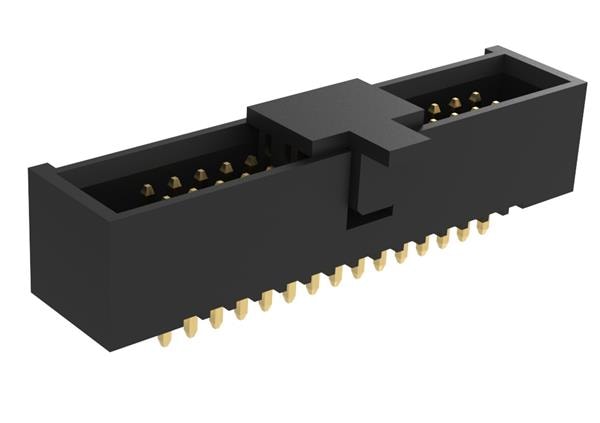

G22B030301TD1HR Amphenol ICC (Commercial Products)

Description: BOX HEADER 1.27MM*1.27MM PITCH S, Packaging: Tape & Reel (TR), Features: Pick and Place, Connector Type: Header, Voltage Rating: 250VDC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 30, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Gold, Contact Shape: Square, Contact Length - Post: 0.075" (1.91mm), Insulation Height: 0.213" (5.40mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.108" (2.75mm).
