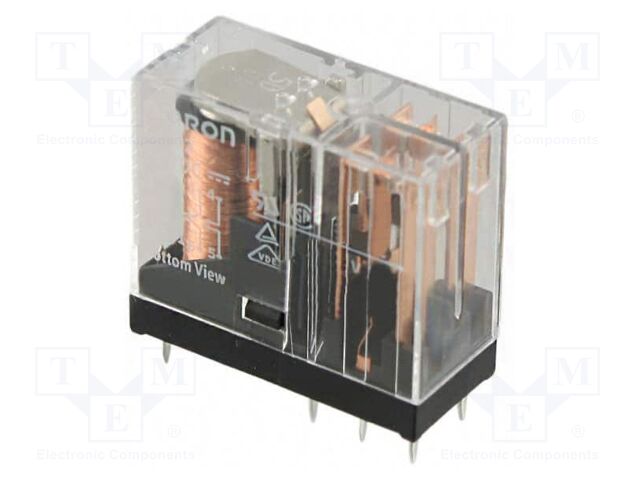

G2R-2-AC220 OMRON
Hersteller: OMRON
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 220VAC; Icontacts max: 5A; G2R
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 220V AC
Contact current max.: 5A
Manufacturer series: G2R
Mounting: THT
Coil resistance: 25kΩ
Operate time: 15ms
Body dimensions: 29x13x25.5mm
Release time: 10ms
Coil power consumption: 0.9W
Contact material: Ag
Coil current: 4.1mA
Leads: for PCB
Height: 25.5mm
Number of pins: 8
Current rating: 5A
Operating temperature: -40...70°C
Produktrezensionen
Produktbewertung abgeben
Technische Details G2R-2-AC220 OMRON
Description: RELAY GEN PURPOSE DPDT 5A 220V, Packaging: Tray, Part Status: Active, Release Time: 10 ms, Operate Time: 15 ms, Must Operate Voltage: 176 VAC, Must Release Voltage: 66 VAC, Switching Voltage: 380VAC, 125VDC - Max, Contact Rating (Current): 5 A, Contact Form: DPDT (2 Form C), Contact Material: Silver Alloy, Seal Rating: Sealed - Flux Protection, Coil Type: Non Latching, Coil Current: 4.1 mA, Relay Type: General Purpose, Termination Style: PC Pin, Operating Temperature: -40°C ~ 70°C, Coil Voltage: 220VAC, Mounting Type: Through Hole, Load - Max Switching: 1900VA, 625W, Approval Agency: CSA, TUV, UR, VDE.
Weitere Produktangebote G2R-2-AC220 nach Preis ab 18.18 EUR bis 27.86 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2R-2-AC220 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE DPDT 5A 220V Packaging: Tray Part Status: Active Release Time: 10 ms Operate Time: 15 ms Must Operate Voltage: 176 VAC Must Release Voltage: 66 VAC Switching Voltage: 380VAC, 125VDC - Max Contact Rating (Current): 5 A Contact Form: DPDT (2 Form C) Contact Material: Silver Alloy Seal Rating: Sealed - Flux Protection Coil Type: Non Latching Coil Current: 4.1 mA Relay Type: General Purpose Termination Style: PC Pin Operating Temperature: -40°C ~ 70°C Coil Voltage: 220VAC Mounting Type: Through Hole Load - Max Switching: 1900VA, 625W Approval Agency: CSA, TUV, UR, VDE |
auf Bestellung 79 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
|
|
G2R-2 AC220 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE DPDT 5A 220V Packaging: Tray Mounting Type: Through Hole Coil Voltage: 220VAC Operating Temperature: -40°C ~ 70°C Termination Style: PC Pin Approval Agency: CSA, TUV, UR, VDE Relay Type: General Purpose Coil Current: 4.1 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy Contact Form: DPDT (2 Form C) Contact Rating (Current): 5 A Switching Voltage: 380VAC, 125VDC - Max Must Release Voltage: 66 VAC Must Operate Voltage: 176 VAC Operate Time: 15 ms Release Time: 10 ms Load - Max Switching: 1900VA, 625W |
auf Bestellung 34 Stücke: Lieferzeit 10-14 Tag (e) |
|
| G2R-2-AC220 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE DPDT 5A 220V
Packaging: Tray
Part Status: Active
Release Time: 10 ms
Operate Time: 15 ms
Must Operate Voltage: 176 VAC
Must Release Voltage: 66 VAC
Switching Voltage: 380VAC, 125VDC - Max
Contact Rating (Current): 5 A
Contact Form: DPDT (2 Form C)
Contact Material: Silver Alloy
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 4.1 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 70°C
Coil Voltage: 220VAC
Mounting Type: Through Hole
Load - Max Switching: 1900VA, 625W
Approval Agency: CSA, TUV, UR, VDE
Description: RELAY GEN PURPOSE DPDT 5A 220V
Packaging: Tray
Part Status: Active
Release Time: 10 ms
Operate Time: 15 ms
Must Operate Voltage: 176 VAC
Must Release Voltage: 66 VAC
Switching Voltage: 380VAC, 125VDC - Max
Contact Rating (Current): 5 A
Contact Form: DPDT (2 Form C)
Contact Material: Silver Alloy
Seal Rating: Sealed - Flux Protection
Coil Type: Non Latching
Coil Current: 4.1 mA
Relay Type: General Purpose
Termination Style: PC Pin
Operating Temperature: -40°C ~ 70°C
Coil Voltage: 220VAC
Mounting Type: Through Hole
Load - Max Switching: 1900VA, 625W
Approval Agency: CSA, TUV, UR, VDE
auf Bestellung 79 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 22.72 EUR |
| 10+ | 20.19 EUR |
| 25+ | 19.19 EUR |
| 40+ | 18.18 EUR |
| G2R-2 AC220 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE DPDT 5A 220V
Packaging: Tray
Mounting Type: Through Hole
Coil Voltage: 220VAC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Approval Agency: CSA, TUV, UR, VDE
Relay Type: General Purpose
Coil Current: 4.1 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 5 A
Switching Voltage: 380VAC, 125VDC - Max
Must Release Voltage: 66 VAC
Must Operate Voltage: 176 VAC
Operate Time: 15 ms
Release Time: 10 ms
Load - Max Switching: 1900VA, 625W
Description: RELAY GEN PURPOSE DPDT 5A 220V
Packaging: Tray
Mounting Type: Through Hole
Coil Voltage: 220VAC
Operating Temperature: -40°C ~ 70°C
Termination Style: PC Pin
Approval Agency: CSA, TUV, UR, VDE
Relay Type: General Purpose
Coil Current: 4.1 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 5 A
Switching Voltage: 380VAC, 125VDC - Max
Must Release Voltage: 66 VAC
Must Operate Voltage: 176 VAC
Operate Time: 15 ms
Release Time: 10 ms
Load - Max Switching: 1900VA, 625W
auf Bestellung 34 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 27.86 EUR |
| 10+ | 24.81 EUR |
| 25+ | 23.7 EUR |
