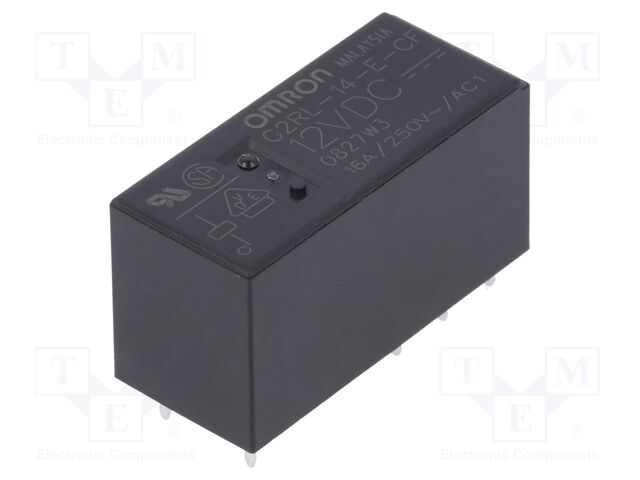

G2RL-14-E-CF 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Mounting: PCB
Leads: for PCB
Relay variant: miniature
Switched voltage: max. 300V DC; max. 440V AC
Operate time: 15ms
Release time: 5ms
Relay series: G2RL
Operating temperature: -40...85°C
Body dimensions: 29x12.7x15.7mm
Coil resistance: 360Ω
Contact resistance: 100mΩ
Coil current: 33.3mA
Terminal pitch: 5mm
Enclosure description: hermetic seal
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Mounting: PCB
Leads: for PCB
Relay variant: miniature
Switched voltage: max. 300V DC; max. 440V AC
Operate time: 15ms
Release time: 5ms
Relay series: G2RL
Operating temperature: -40...85°C
Body dimensions: 29x12.7x15.7mm
Coil resistance: 360Ω
Contact resistance: 100mΩ
Coil current: 33.3mA
Terminal pitch: 5mm
Enclosure description: hermetic seal
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-14-E-CF 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Mounting: PCB, Leads: for PCB, Relay variant: miniature, Switched voltage: max. 300V DC; max. 440V AC, Operate time: 15ms, Release time: 5ms, Relay series: G2RL, Operating temperature: -40...85°C, Body dimensions: 29x12.7x15.7mm, Coil resistance: 360Ω, Contact resistance: 100mΩ, Coil current: 33.3mA, Terminal pitch: 5mm, Enclosure description: hermetic seal, Anzahl je Verpackung: 1 Stücke.
