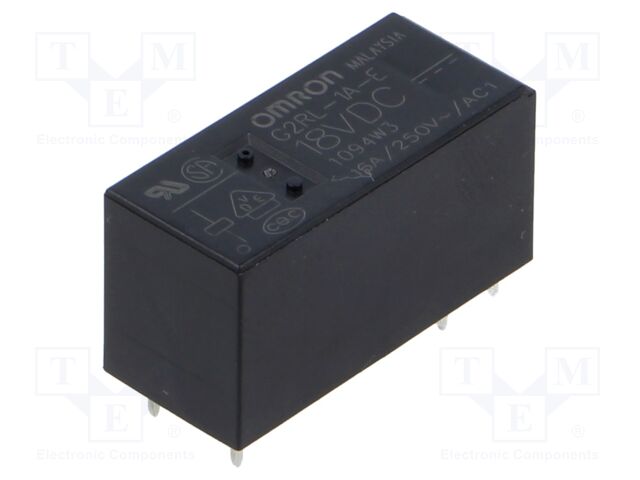

G2RL-1A-E-DC18 OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; 16A; 16A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 18V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Manufacturer series: G2RL
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 5ms
Mechanical durability: 20000000 cycles
Contact resistance: 100mΩ
Contact material: AgSnO2
Leads: for PCB
Enclosure description: standard seal
Operating temperature: -40...85°C
| Anzahl | Preis |
|---|---|
| 15+ | 4.79 EUR |
| 17+ | 4.29 EUR |
| 20+ | 3.96 EUR |
| 40+ | 3.56 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-1A-E-DC18 OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 18VDC; 16A; 16A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 18V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Manufacturer series: G2RL, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 5ms, Mechanical durability: 20000000 cycles, Contact resistance: 100mΩ, Contact material: AgSnO2, Leads: for PCB, Enclosure description: standard seal, Operating temperature: -40...85°C.
Weitere Produktangebote G2RL-1A-E-DC18 nach Preis ab 3.92 EUR bis 6.02 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2RL-1A-E DC18 | Omron Electronics |
General Purpose Relays SPST-NO 16A 18VDC Thru-Hole |
auf Bestellung 21 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
G2RL-1A-E DC18 | Omron Electronics Inc-EMC Div |
Description: RELAY GEN PURPOSE SPST 16A 18V Packaging: Tube Mounting Type: Through Hole Coil Voltage: 18VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CQC, CSA, UR, VDE Relay Type: General Purpose Coil Current: 22.2 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy, Cadmium Free Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 16 A Switching Voltage: 440VAC, 300VDC - Max Must Release Voltage: 1.8 VDC Must Operate Voltage: 12.6 VDC Operate Time: 15 ms Release Time: 5 ms Coil Insulation: Class F Load - Max Switching: 7040VA, 4800W |
auf Bestellung 98 Stücke: Lieferzeit 10-14 Tag (e) |
|
| G2RL-1A-E DC18 |
|
Hersteller: Omron Electronics
General Purpose Relays SPST-NO 16A 18VDC Thru-Hole
General Purpose Relays SPST-NO 16A 18VDC Thru-Hole
auf Bestellung 21 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 5.91 EUR |
| 10+ | 5.32 EUR |
| 20+ | 4.93 EUR |
| 50+ | 4.82 EUR |
| 100+ | 4.26 EUR |
| 200+ | 3.98 EUR |
| 500+ | 3.92 EUR |
| G2RL-1A-E DC18 |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: RELAY GEN PURPOSE SPST 16A 18V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 18VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 22.2 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.8 VDC
Must Operate Voltage: 12.6 VDC
Operate Time: 15 ms
Release Time: 5 ms
Coil Insulation: Class F
Load - Max Switching: 7040VA, 4800W
Description: RELAY GEN PURPOSE SPST 16A 18V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 18VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 22.2 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.8 VDC
Must Operate Voltage: 12.6 VDC
Operate Time: 15 ms
Release Time: 5 ms
Coil Insulation: Class F
Load - Max Switching: 7040VA, 4800W
auf Bestellung 98 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 6.02 EUR |
| 10+ | 5.36 EUR |
| 25+ | 5.12 EUR |
| 50+ | 4.94 EUR |
