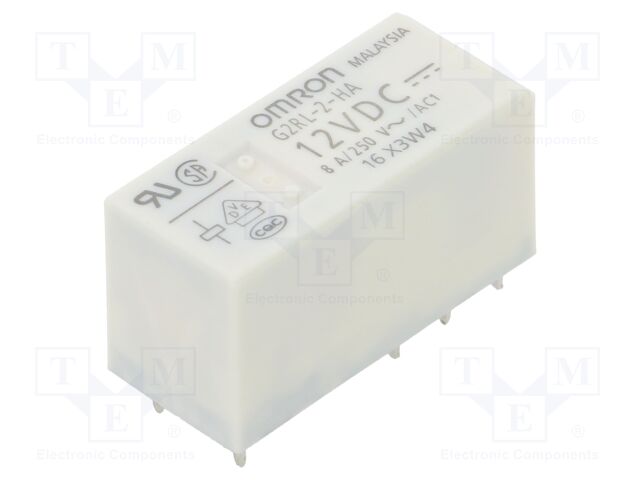

G2RL-2-HA-DC12 Aratas (Formerly Omron Components)
Hersteller: Aratas (Formerly Omron Components)
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 12VDC; DPDT; Icontacts max: 8A; G2RL
Type of relay: electromagnetic
Switched voltage: max. 300V DC; max. 440V AC
Manufacturer series: G2RL
Relay variant: miniature
Mounting: PCB
Body dimensions: 29x12.7x15.7mm
Operating temperature: -40...85°C
Mechanical durability: 20000000 cycles
DC contacts rating @R: 8A / 30V DC
AC contacts rating @R: 8A / 250V AC
Contacts configuration: DPDT
Leads: for PCB
Operate time: 15ms
Coil current: 33.3mA
Enclosure description: standard seal
Release time: 5ms
Coil voltage: 12V DC
Contact resistance: 100mΩ
Coil resistance: 360Ω
Contact material: AgNi
Contact current max.: 8A
Produktrezensionen
Produktbewertung abgeben
Technische Details G2RL-2-HA-DC12 Aratas (Formerly Omron Components)
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; Ucoil: 12VDC; DPDT; Icontacts max: 8A; G2RL, Type of relay: electromagnetic, Switched voltage: max. 300V DC; max. 440V AC, Manufacturer series: G2RL, Relay variant: miniature, Mounting: PCB, Body dimensions: 29x12.7x15.7mm, Operating temperature: -40...85°C, Mechanical durability: 20000000 cycles, DC contacts rating @R: 8A / 30V DC, AC contacts rating @R: 8A / 250V AC, Contacts configuration: DPDT, Leads: for PCB, Operate time: 15ms, Coil current: 33.3mA, Enclosure description: standard seal, Release time: 5ms, Coil voltage: 12V DC, Contact resistance: 100mΩ, Coil resistance: 360Ω, Contact material: AgNi, Contact current max.: 8A.
Weitere Produktangebote G2RL-2-HA-DC12 nach Preis ab 6.87 EUR bis 9.92 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2RL-2-HA DC12 | Aratas (Formerly Omron Components) |
 Description: RELAY GEN PURPOSE DPDT 8A 12VPackaging: Tube Mounting Type: Through Hole Coil Voltage: 12VDC Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Approval Agency: CQC, CSA, UR, VDE Relay Type: General Purpose Coil Current: 20.8 mA Coil Type: Non Latching Seal Rating: Sealed - Flux Protection Contact Material: Silver Alloy, Cadmium Free Contact Form: DPDT (2 Form C) Contact Rating (Current): 8 A Switching Voltage: 440VAC, 300VDC - Max Must Release Voltage: 1.2 VDC Must Operate Voltage: 9 VDC Operate Time: 15 ms Release Time: 5 ms Load - Max Switching: 3520VA, 2400W |
auf Bestellung 70 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| G2RL-2-HA DC12 | Omron |
Power Relay 12VDC 8A DPDT(29mm 12.5mm 15.7mm) THT |
auf Bestellung 33 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
| G2RL-2-HA DC12 | Aratas |
General Purpose Relays Power PCB Relay |
auf Bestellung 236 Stücke: Lieferzeit 10-14 Tag (e) |
|
| G2RL-2-HA DC12 |
|
Hersteller: Aratas (Formerly Omron Components)
Description: RELAY GEN PURPOSE DPDT 8A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 20.8 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 9 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 3520VA, 2400W
Description: RELAY GEN PURPOSE DPDT 8A 12V
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 12VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CQC, CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 20.8 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Alloy, Cadmium Free
Contact Form: DPDT (2 Form C)
Contact Rating (Current): 8 A
Switching Voltage: 440VAC, 300VDC - Max
Must Release Voltage: 1.2 VDC
Must Operate Voltage: 9 VDC
Operate Time: 15 ms
Release Time: 5 ms
Load - Max Switching: 3520VA, 2400W
auf Bestellung 70 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 9.92 EUR |
| 10+ | 8.85 EUR |
| 25+ | 8.46 EUR |
| 50+ | 8.16 EUR |
| G2RL-2-HA DC12 |
|
Hersteller: Omron
Power Relay 12VDC 8A DPDT(29mm 12.5mm 15.7mm) THT
Power Relay 12VDC 8A DPDT(29mm 12.5mm 15.7mm) THT
auf Bestellung 33 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 19+ | 9.41 EUR |
| 20+ | 8.96 EUR |
| G2RL-2-HA DC12 |
|
Hersteller: Aratas
General Purpose Relays Power PCB Relay
General Purpose Relays Power PCB Relay
auf Bestellung 236 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 9.72 EUR |
| 10+ | 8.69 EUR |
| 20+ | 8.29 EUR |
| 50+ | 7.9 EUR |
| 200+ | 7.46 EUR |
| 500+ | 7.06 EUR |
| 1000+ | 6.87 EUR |
