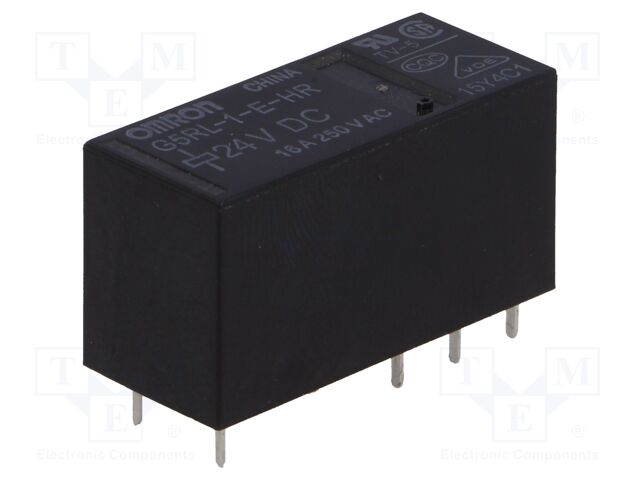

G5RL-1-E-HR 24VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Manufacturer series: G5RL
Switched voltage: max. 24V DC; max. 250V AC
Relay variant: inrush; miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Body dimensions: 29x12.7x15.7mm
Coil power consumption: 400mW
Operating temperature: -40...70°C
Terminal pitch: 5mm
Max surge current: 50A
Contact resistance: 100mΩ
Coil current: 16.7mA
Leads: for PCB
Operate time: 15ms
Release time: 5ms
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1509 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 20+ | 3.73 EUR |
| 22+ | 3.39 EUR |
| 30+ | 2.46 EUR |
| 31+ | 2.33 EUR |
| 500+ | 2.30 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5RL-1-E-HR 24VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Manufacturer series: G5RL, Switched voltage: max. 24V DC; max. 250V AC, Relay variant: inrush; miniature, Mounting: PCB, Coil resistance: 1.44kΩ, Body dimensions: 29x12.7x15.7mm, Coil power consumption: 400mW, Operating temperature: -40...70°C, Terminal pitch: 5mm, Max surge current: 50A, Contact resistance: 100mΩ, Coil current: 16.7mA, Leads: for PCB, Operate time: 15ms, Release time: 5ms, Anzahl je Verpackung: 1 Stücke.
