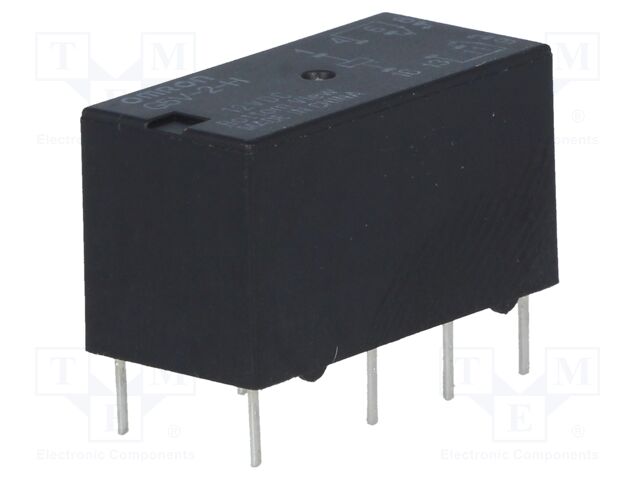

G5V-2-H 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
Manufacturer series: G5V-2
Mounting: PCB
Coil resistance: 400Ω
Coil power consumption: 360mW
Operating temperature: -25...70°C
Contact resistance: 50mΩ
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Switched voltage: max. 125V AC; max. 125V DC
Contact plating: gold-plated
Relay variant: miniature
Release time: 3ms
Terminal pitch: 5mm
Coil current: 30mA
Operate time: 7ms
Body dimensions: 20.5x10.1x11.5mm
Anzahl je Verpackung: 500 Stücke
