Produkte > OMRON ELECTRONIC COMPONENTS > G6RN-17-E-ASI-CF-HA 5DC

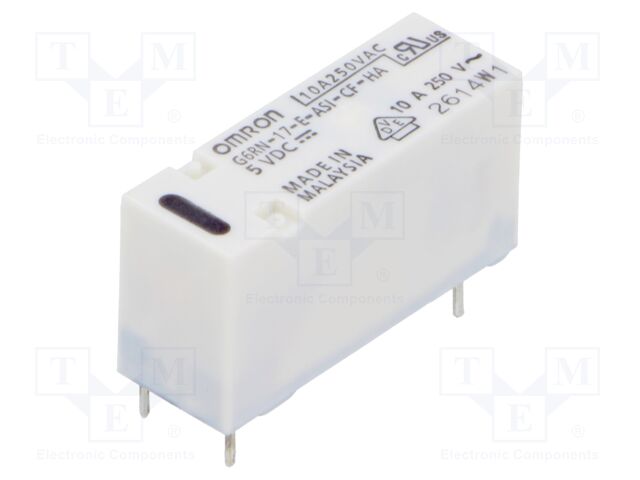

G6RN-17-E-ASI-CF-HA 5DC

G6RN-17-E-ASI-CF-HA 5DC OMRON Electronic Components


pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA2D3D47BE1CF00D6&compId=G6RN.pdf?ci_sign=7d1982d4651b2ada376404818e490dfc847cbe6a Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; G6RN
Manufacturer series: G6RN
Body dimensions: 28.5x10x15mm
Mounting: PCB
Operating temperature: -40...85°C
Coil resistance: 114Ω
Contacts configuration: SPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil power consumption: 220mW
Operate time: 15ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 8A
Contact resistance: 100mΩ
Coil current: 43.9mA
Leads: for soldering
Contact material: AgSnIn
Anzahl je Verpackung: 1 Stücke
auf Bestellung 50 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
20+3.66 EUR
27+2.66 EUR
29+2.52 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details G6RN-17-E-ASI-CF-HA 5DC OMRON Electronic Components

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; G6RN, Manufacturer series: G6RN, Body dimensions: 28.5x10x15mm, Mounting: PCB, Operating temperature: -40...85°C, Coil resistance: 114Ω, Contacts configuration: SPDT, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 5A / 30V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 5V DC, Coil power consumption: 220mW, Operate time: 15ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 8A, Contact resistance: 100mΩ, Coil current: 43.9mA, Leads: for soldering, Contact material: AgSnIn, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote G6RN-17-E-ASI-CF-HA 5DC nach Preis ab 2.52 EUR bis 5.28 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
G6RN-17-E-ASI-CF-HA 5DC G6RN-17-E-ASI-CF-HA 5DC Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA2D3D47BE1CF00D6&compId=G6RN.pdf?ci_sign=7d1982d4651b2ada376404818e490dfc847cbe6a Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 8A; G6RN
Manufacturer series: G6RN
Body dimensions: 28.5x10x15mm
Mounting: PCB
Operating temperature: -40...85°C
Coil resistance: 114Ω
Contacts configuration: SPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 5A / 30V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 5V DC
Coil power consumption: 220mW
Operate time: 15ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 8A
Contact resistance: 100mΩ
Coil current: 43.9mA
Leads: for soldering
Contact material: AgSnIn
auf Bestellung 50 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
20+3.66 EUR
27+2.66 EUR
29+2.52 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
G6RN-17-E-ASI-CF-HA-5DC G6RN-17-E-ASI-CF-HA-5DC Hersteller : Omron Electronics Inc-EMC Div Description: 10A Load, meet Anti-explosion
Packaging: Tube
Mounting Type: Through Hole
Coil Voltage: 5VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Approval Agency: CSA, UR, VDE
Relay Type: General Purpose
Coil Current: 43.9 mA
Coil Type: Non Latching
Seal Rating: Sealed - Flux Protection
Contact Material: Silver Tin Indium (AgSnIn)
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 250VAC, 30VDC - Max
Must Release Voltage: 0.5 VDC
Must Operate Voltage: 3.5 VDC
Operate Time: 15 ms
Release Time: 5 ms
Coil Insulation: Class F
Load - Max Switching: 2500VA, 300W
auf Bestellung 160 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
60+4.29 EUR
Mindestbestellmenge: 60
Im Einkaufswagen  Stück im Wert von  UAH
G6RN-17-E-ASI-CF-HA-5DC Hersteller : Omron G6RN-17-E-ASI-CF-HA-5DC
auf Bestellung 160 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
60+4.35 EUR
Mindestbestellmenge: 60
Im Einkaufswagen  Stück im Wert von  UAH
G6RN-17-E-ASI-CF-HA-5DC Hersteller : Omron G6RN-17-E-ASI-CF-HA-5DC
auf Bestellung 50 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
28+5.28 EUR
Mindestbestellmenge: 28
Im Einkaufswagen  Stück im Wert von  UAH
