Produkte > OMRON ELECTRONIC COMPONENTS > G6S-2 5VDC

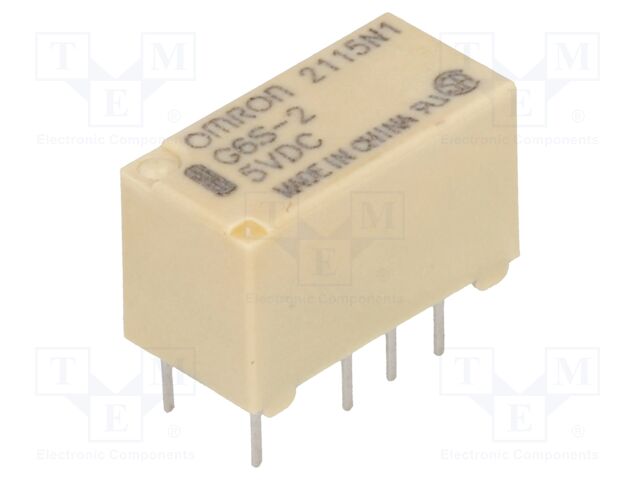

G6S-2 5VDC

G6S-2 5VDC OMRON Electronic Components

pVersion=0046&contRep=ZT&docId=E2396B6A2DB4C6F1A303005056AB0C4F&compId=G6S.PDF?ci_sign=5c9cedfd18ac2c67af19d55e04fd7dcc6540cb9b Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; G6S
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: G6S
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Operate time: 4ms
Body dimensions: 14.8x7.3x9.2mm
Release time: 4ms
Coil power consumption: 140mW
Operating temperature: -40...85°C
Contact resistance: 75mΩ
Terminal pitch: 2.54mm
Coil current: 28.1mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 335 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
14+5.38 EUR
20+3.62 EUR
21+3.42 EUR
500+3.29 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details G6S-2 5VDC OMRON Electronic Components

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; G6S, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Manufacturer series: G6S, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 178Ω, Operate time: 4ms, Body dimensions: 14.8x7.3x9.2mm, Release time: 4ms, Coil power consumption: 140mW, Operating temperature: -40...85°C, Contact resistance: 75mΩ, Terminal pitch: 2.54mm, Coil current: 28.1mA, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote G6S-2 5VDC nach Preis ab 3.42 EUR bis 8.41 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
G6S-2 5VDC G6S-2 5VDC Hersteller : OMRON Electronic Components pVersion=0046&contRep=ZT&docId=E2396B6A2DB4C6F1A303005056AB0C4F&compId=G6S.PDF?ci_sign=5c9cedfd18ac2c67af19d55e04fd7dcc6540cb9b Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; G6S
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Manufacturer series: G6S
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 178Ω
Operate time: 4ms
Body dimensions: 14.8x7.3x9.2mm
Release time: 4ms
Coil power consumption: 140mW
Operating temperature: -40...85°C
Contact resistance: 75mΩ
Terminal pitch: 2.54mm
Coil current: 28.1mA
auf Bestellung 335 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
14+5.38 EUR
20+3.62 EUR
21+3.42 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
G6S-2 5 VDC G6S-2 5 VDC Hersteller : Omron g6s_0514.pdf Signal Relay 5VDC 2A DPDT(14.8x7.3x9.2)mm THT
auf Bestellung 335 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
17+8.41 EUR
25+6.19 EUR
100+5.36 EUR
Mindestbestellmenge: 17
Im Einkaufswagen  Stück im Wert von  UAH
G6S-2-5VDC
auf Bestellung 2900 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
