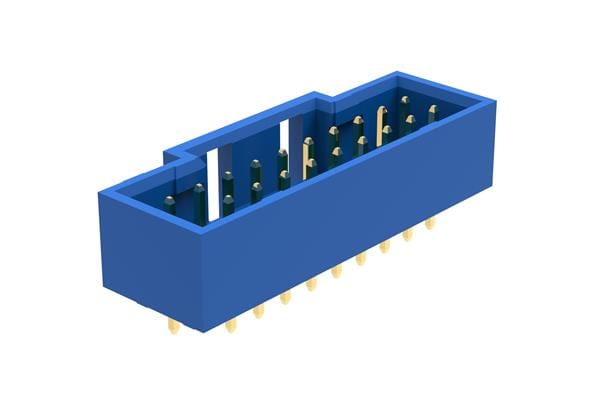

G823J201241BHR Amphenol ICC (Commercial Products)

Description: BOX HEADER FOR USB 3.0,2.0MM PIT, Packaging: Tray, Connector Type: Header, Voltage Rating: 30VAC, Current Rating (Amps): 1.5A (AC/DC), Mounting Type: Through Hole, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Blue, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Shape: Square, Contact Length - Post: 0.098" (2.50mm), Insulation Height: 0.256" (6.50mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.323" (8.20mm), Insulation Material: Polyamide (PA9T), Nylon 9T, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.152" (3.86mm).
