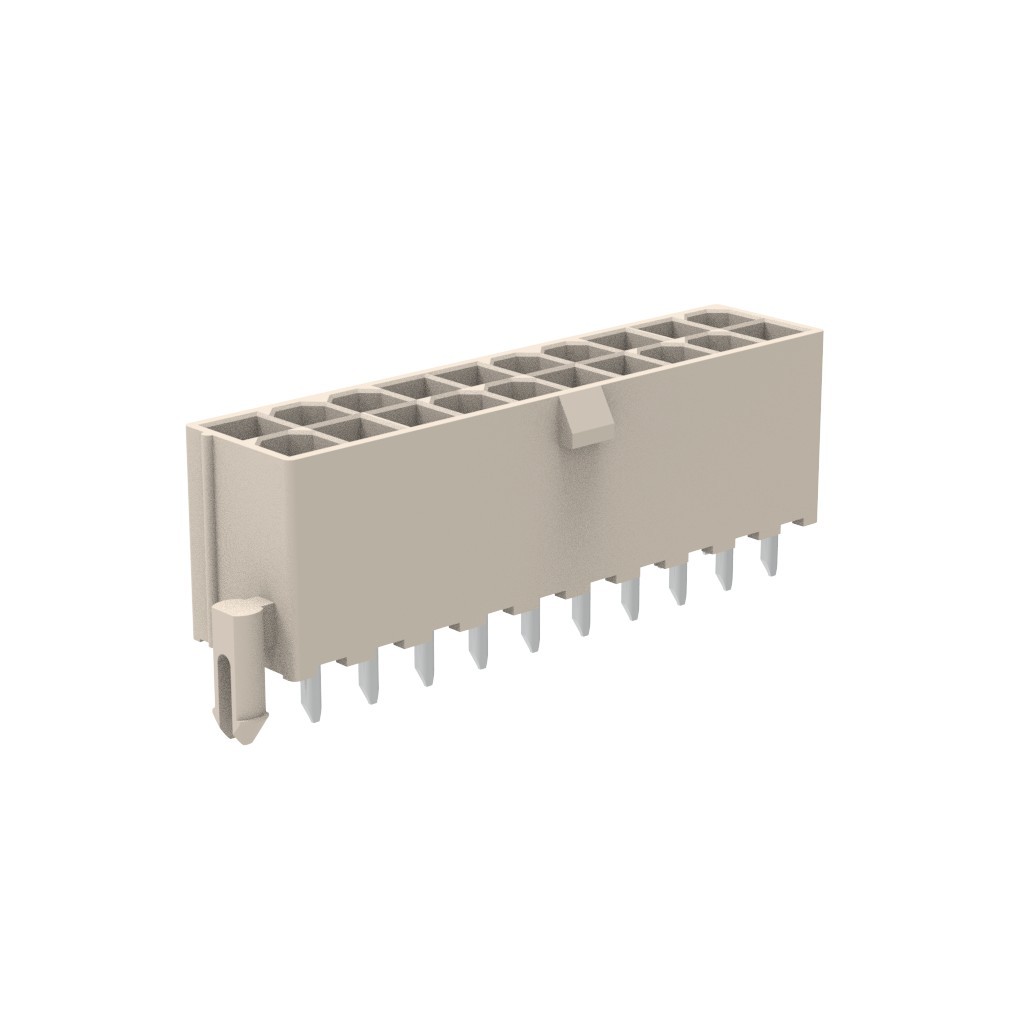

G874D201110C1EU Amphenol ICC (Commercial Products)

Description: MINI POWR CONN, P=4.2MM, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): 6A, Voltage Rating: 500VAC, Connector Type: Header, Features: Board Lock, Packaging: Tray, Row Spacing - Mating: 0.217" (5.50mm), Insulation Material: Polyamide (PA6T), Nylon 6T, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.504" (12.80mm), Contact Length - Post: 0.138" (3.50mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Mating: Tin, Pitch - Mating: 0.165" (4.20mm), Insulation Color: Natural, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Cable/Wire.
