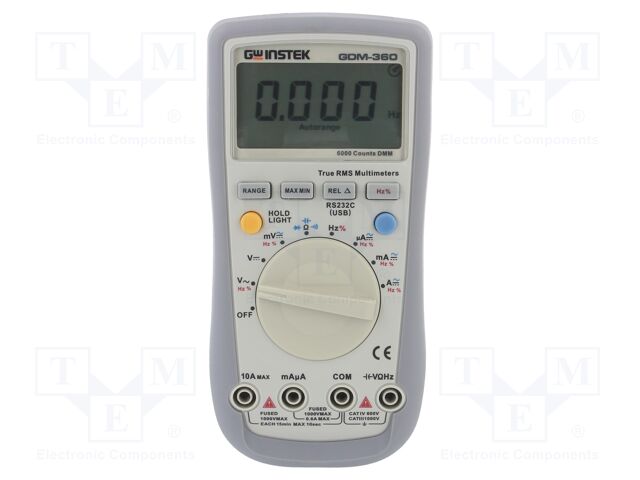

GDM-360 GW INSTEK

Category: Portable digital multimeters, Description: Digital multimeter; RS232; LCD; (5999); Bargraph: 61segm; True RMS, Type of meter: digital multimeter, Interface: RS232, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance, Kind of display used: LCD, Display parameters: (5999), Bargraph: 61 segm., DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V, DC voltage measuring accuracy: ±(0.5% + 1 digit), AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 750V, AC voltage measuring accuracy: ±(1% + 3 digit), DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, DC current measuring accuracy: ±(1% + 3 digit), AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, AC current measuring accuracy: ±(1.2% + 5 digit), True effective value measurement: True RMS, Resistance measuring range: 600...60MΩ, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF, Capacitance measuring accuracy: ±(3%+ 5 digit), Frequency measuring range: 10...10MHz, Frequency measuring accuracy: ±(0.1%+4 digit), Resistance measuring accuracy: ±(0.1%+2 digit), Continuity test: acoustic indication, Power supply: battery 6F22 9V x1, Standard equipment: RS232C cable; test leads, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Dimensions (W x H x D): 87x180x47mm, Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; MIN/MAX function; REL function, Battery/ rechargeable battery: battery 6F22 9V x1, Producer guarantee (months): 24, Software: included, Illumination: yes, Test: diodes, Anzahl je Verpackung: 1 Stücke.
