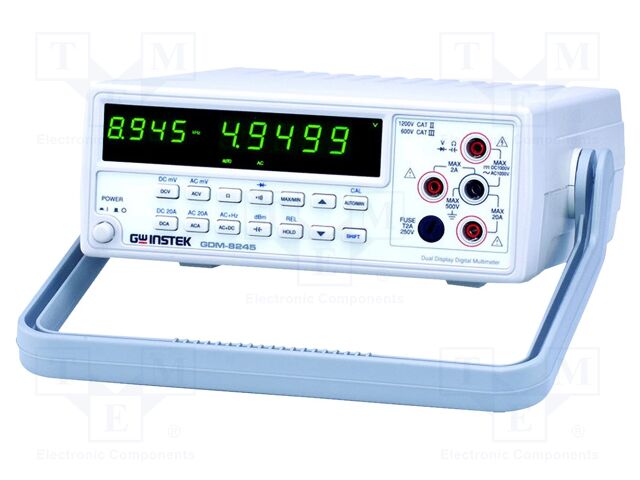

GDM-8245 GW INSTEK

Category: Benchtop digital multimeters, Description: Benchtop multimeter; LED; (50000); True RMS; Diode test: 2.8V, Standard equipment: cable GTL-117; mains cable; user's manual, Type of meter: benchtop multimeter, Continuity test: acoustic indication, True effective value measurement: True RMS, Measurement: AC current; AC voltage; DC current; DC voltage; resistance, AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 2A; 20A, Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 20MΩ, DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 2A; 20A, DC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV, AC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV, Diode test: 2.8V, Connectors for the country: Europe, Display parameters: (50000), AC current measuring accuracy: ±(0.5% + 15 digit), DC voltage measuring accuracy: ±(0.03% + 4 digit), DC current measuring accuracy: ±(0.2% + 2 digit) @(500µA...500mA); ±(0.3% + 2 digit) @(2A...20A), AC voltage measuring accuracy: ±(0.5%...5%), Resistance measuring accuracy: ±(0.1%+2 digit)@(5kΩ...500kΩ); ±(0.1%+4 digit)@(500Ω); ±(0.2%+2 digit)@(5MΩ); ±(0.3%+2 digit)@(20MΩ), Kind of display used: LED, Anzahl je Verpackung: 1 Stücke.
