GKS-100 214 150 A 2000 C INGUN
Hersteller: INGUN
Category: Contact Probes

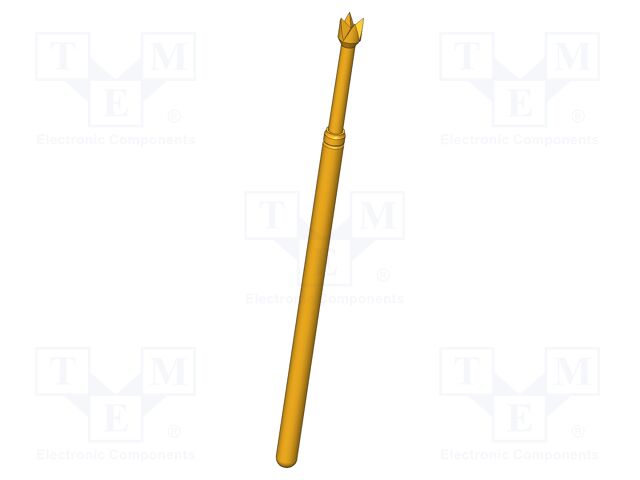

Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm
Mounting: push-in
Manufacturer series: GKS-100
Operating temperature: -100...200°C
Contact material: steel
Length: 33.4mm
Current rating: 5A
Blade tip shape: 4-piont; corona
Type of test accessories: test needle
Maksimum spring compression: 6.35mm
Operational spring compression: 4.3mm
Tip diameter: 1.5mm
Test accessories features: magnetic; self-cleaning
Max. contact resistance:: 100mΩ
Contact plating: gold-plated
Spring compression force: 2N
Anzahl je Verpackung: 1 Stücke
Category: Contact Probes
Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm
Mounting: push-in
Manufacturer series: GKS-100
Operating temperature: -100...200°C
Contact material: steel
Length: 33.4mm
Current rating: 5A
Blade tip shape: 4-piont; corona
Type of test accessories: test needle
Maksimum spring compression: 6.35mm
Operational spring compression: 4.3mm
Tip diameter: 1.5mm
Test accessories features: magnetic; self-cleaning
Max. contact resistance:: 100mΩ
Contact plating: gold-plated
Spring compression force: 2N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-100 214 150 A 2000 C INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm, Mounting: push-in, Manufacturer series: GKS-100, Operating temperature: -100...200°C, Contact material: steel, Length: 33.4mm, Current rating: 5A, Blade tip shape: 4-piont; corona, Type of test accessories: test needle, Maksimum spring compression: 6.35mm, Operational spring compression: 4.3mm, Tip diameter: 1.5mm, Test accessories features: magnetic; self-cleaning, Max. contact resistance:: 100mΩ, Contact plating: gold-plated, Spring compression force: 2N, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-100 214 150 A 2000 C
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
GKS-100 214 150 A 2000 C | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm Mounting: push-in Manufacturer series: GKS-100 Operating temperature: -100...200°C Contact material: steel Length: 33.4mm Current rating: 5A Blade tip shape: 4-piont; corona Type of test accessories: test needle Maksimum spring compression: 6.35mm Operational spring compression: 4.3mm Tip diameter: 1.5mm Test accessories features: magnetic; self-cleaning Max. contact resistance:: 100mΩ Contact plating: gold-plated Spring compression force: 2N |
Produkt ist nicht verfügbar |
