GKS-101 314 130 A 1500 INGUN
Hersteller: INGUNCategory: Contact Probes

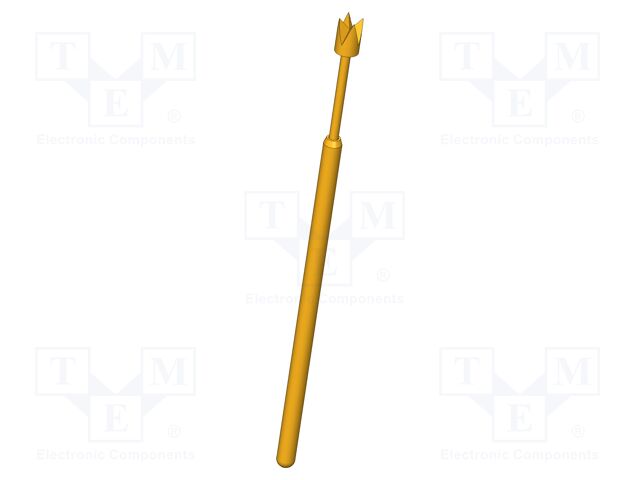

Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 1.3mm
Type of test accessories: test needle
Contact plating: gold-plated
Manufacturer series: GKS-101
Test accessories features: magnetic; self-cleaning
Length: 27.3mm
Mounting: push-in
Operating temperature: -40...80°C
Tip diameter: 1.3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 20mΩ
Spring compression force: 0.5N
Current rating: 4A
Blade tip shape: 4-point; corona
Contact material: CuBe
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-101 314 130 A 1500 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 1.3mm, Type of test accessories: test needle, Contact plating: gold-plated, Manufacturer series: GKS-101, Test accessories features: magnetic; self-cleaning, Length: 27.3mm, Mounting: push-in, Operating temperature: -40...80°C, Tip diameter: 1.3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 20mΩ, Spring compression force: 0.5N, Current rating: 4A, Blade tip shape: 4-point; corona, Contact material: CuBe, Anzahl je Verpackung: 1 Stücke.
