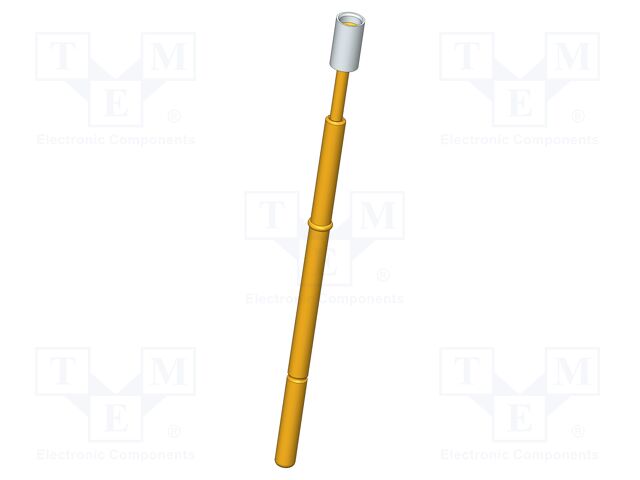

GKS-112 003 230 A 3010 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm
Manufacturer series: GKS-112
Current rating: 5A
Length: 41.1mm
Contact material: plastic
Blade tip shape: cone; inverted
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 2.3mm
Test accessories features: insulated; magnetic
Spring compression force: 3N
Mounting: push-in
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 003 230 A 3010 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm, Manufacturer series: GKS-112, Current rating: 5A, Length: 41.1mm, Contact material: plastic, Blade tip shape: cone; inverted, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 2.3mm, Test accessories features: insulated; magnetic, Spring compression force: 3N, Mounting: push-in, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-112 003 230 A 3010
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-112 003 230 A 3010 | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm Manufacturer series: GKS-112 Current rating: 5A Length: 41.1mm Contact material: plastic Blade tip shape: cone; inverted Type of test accessories: test needle Maksimum spring compression: 5.3mm Operational spring compression: 4mm Tip diameter: 2.3mm Test accessories features: insulated; magnetic Spring compression force: 3N Mounting: push-in Contact plating: gold-plated Max. contact resistance:: 20mΩ Operating temperature: -40...80°C |
Produkt ist nicht verfügbar |
