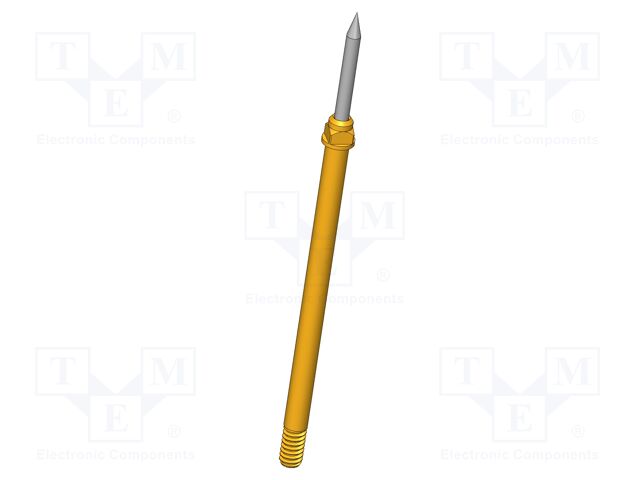

Produkte > INGUN > GKS-112 201 100 R 1502 M
GKS-112 201 100 R 1502 M

GKS-112 201 100 R 1502 M INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0765441D200D6&compId=GKS-112-0027.pdf?ci_sign=d5420833c09c75d44a257e2bcf98f0c8f18729f8 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 1.5N
Mounting: screw-in
Operating temperature: -40...80°C
Blade tip shape: cone; sharp
Manufacturer series: GKS-112
Contact plating: rhodium plated
Test accessories features: magnetic; self-cleaning
Contact material: steel
Type of test accessories: test needle
Tip diameter: 1mm
Operational spring compression: 4mm
Maksimum spring compression: 8mm
Max. contact resistance:: 20mΩ
Length: 35.8mm
Spring compression force: 1.5N
Current rating: 5A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 201 100 R 1502 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 1.5N, Mounting: screw-in, Operating temperature: -40...80°C, Blade tip shape: cone; sharp, Manufacturer series: GKS-112, Contact plating: rhodium plated, Test accessories features: magnetic; self-cleaning, Contact material: steel, Type of test accessories: test needle, Tip diameter: 1mm, Operational spring compression: 4mm, Maksimum spring compression: 8mm, Max. contact resistance:: 20mΩ, Length: 35.8mm, Spring compression force: 1.5N, Current rating: 5A, Anzahl je Verpackung: 1 Stücke.
