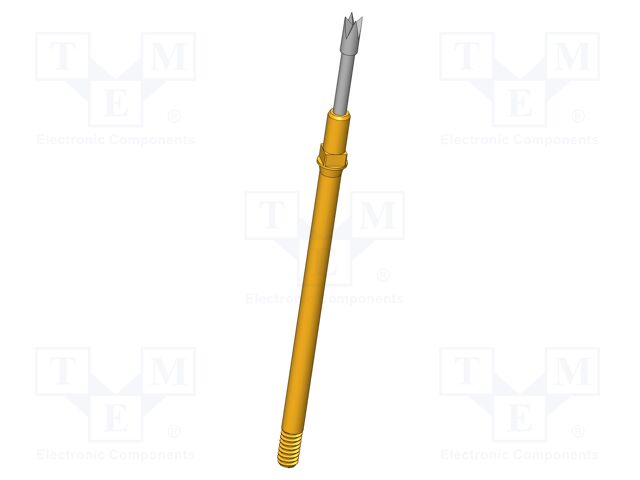

GKS-112 214 130 R 5005 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.3mm
Mounting: screw-in
Operating temperature: -40...80°C
Current rating: 8A
Length: 38.8mm
Contact material: steel
Blade tip shape: 4-point; corona
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.3mm
Test accessories features: magnetic; self-cleaning
Manufacturer series: GKS-112
Spring compression force: 5N
Contact plating: rhodium plated
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 214 130 R 5005 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.3mm, Mounting: screw-in, Operating temperature: -40...80°C, Current rating: 8A, Length: 38.8mm, Contact material: steel, Blade tip shape: 4-point; corona, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.3mm, Test accessories features: magnetic; self-cleaning, Manufacturer series: GKS-112, Spring compression force: 5N, Contact plating: rhodium plated, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.
