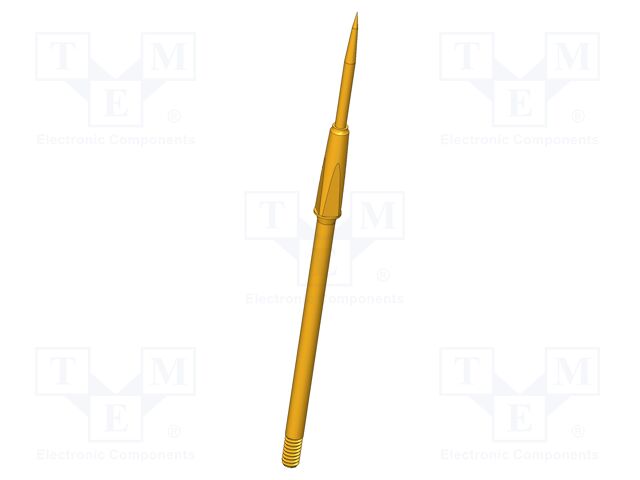

GKS-112 251 108 A 0610 MDL INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.6N
Manufacturer series: GKS-112
Mounting: screw-in
Length: 46.9mm
Contact material: steel
Blade tip shape: flexible; needle
Type of test accessories: test needle
Maksimum spring compression: 8mm
Operational spring compression: 4mm
Tip diameter: 1mm
Test accessories features: magnetic; self-cleaning
Spring compression force: 0.6N
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Current rating: 5A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 251 108 A 0610 MDL INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.6N, Manufacturer series: GKS-112, Mounting: screw-in, Length: 46.9mm, Contact material: steel, Blade tip shape: flexible; needle, Type of test accessories: test needle, Maksimum spring compression: 8mm, Operational spring compression: 4mm, Tip diameter: 1mm, Test accessories features: magnetic; self-cleaning, Spring compression force: 0.6N, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Current rating: 5A, Anzahl je Verpackung: 1 Stücke.
