Produkte > INGUN > GKS-112 302 200 A 0805 M
GKS-112 302 200 A 0805 M

GKS-112 302 200 A 0805 M INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09F07203400D6&compId=GKS-112-2800.pdf?ci_sign=890139f8699ba444ea913894df3d65a9e7bb06a7 Hersteller: INGUN
Category: Contact Probes

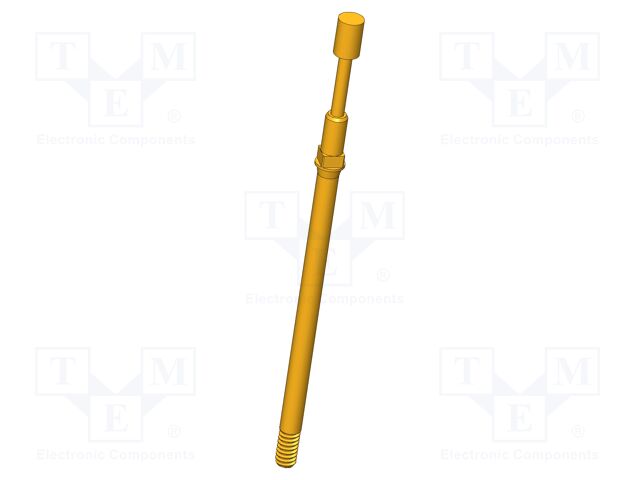

Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2mm; 0.8N
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: cylinder; flat
Tip diameter: 2mm
Manufacturer series: GKS-112
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic
Length: 38.8mm
Spring compression force: 0.8N
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 302 200 A 0805 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2mm; 0.8N, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: cylinder; flat, Tip diameter: 2mm, Manufacturer series: GKS-112, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic, Length: 38.8mm, Spring compression force: 0.8N, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.
