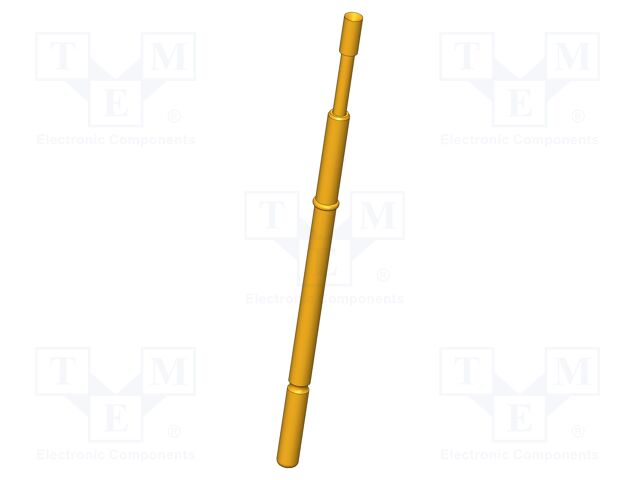

GKS-112 303 140 A 0808 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm
Mounting: push-in
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Current rating: 5A
Length: 38.7mm
Contact material: CuBe
Blade tip shape: cone; inverted
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.4mm
Test accessories features: magnetic
Manufacturer series: GKS-112
Spring compression force: 0.8N
Contact plating: gold-plated
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 303 140 A 0808 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm, Mounting: push-in, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Current rating: 5A, Length: 38.7mm, Contact material: CuBe, Blade tip shape: cone; inverted, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.4mm, Test accessories features: magnetic, Manufacturer series: GKS-112, Spring compression force: 0.8N, Contact plating: gold-plated, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-112 303 140 A 0808
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-112 303 140 A 0808 | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm Mounting: push-in Max. contact resistance:: 20mΩ Operating temperature: -40...80°C Current rating: 5A Length: 38.7mm Contact material: CuBe Blade tip shape: cone; inverted Type of test accessories: test needle Maksimum spring compression: 5.3mm Operational spring compression: 4mm Tip diameter: 1.4mm Test accessories features: magnetic Manufacturer series: GKS-112 Spring compression force: 0.8N Contact plating: gold-plated |
Produkt ist nicht verfügbar |
