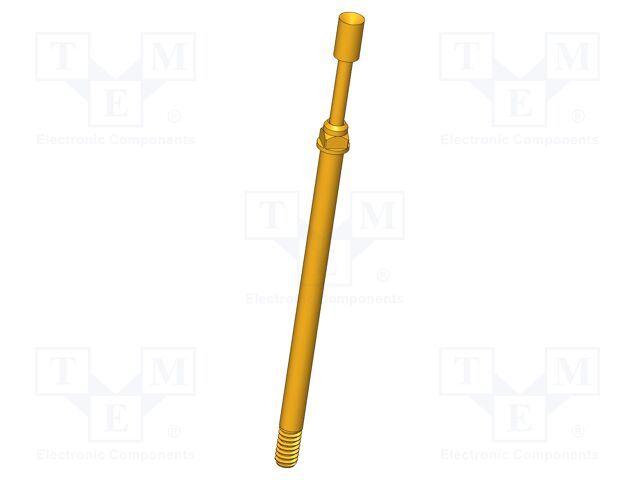

GKS-112 303 180 A 1502 M

GKS-112 303 180 A 1502 M INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A07967754B00D6&compId=GKS-112-0279.pdf?ci_sign=4230492d1a4f4a808fb64f54d518f88f0a3e5c87 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm
Operating temperature: -40...80°C
Manufacturer series: GKS-112
Length: 35.8mm
Contact material: CuBe
Blade tip shape: cone; inverted
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.8mm
Test accessories features: magnetic
Spring compression force: 1.5N
Mounting: screw-in
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Current rating: 8A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 36 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+7.34 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 303 180 A 1502 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm, Operating temperature: -40...80°C, Manufacturer series: GKS-112, Length: 35.8mm, Contact material: CuBe, Blade tip shape: cone; inverted, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.8mm, Test accessories features: magnetic, Spring compression force: 1.5N, Mounting: screw-in, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Current rating: 8A, Anzahl je Verpackung: 1 Stücke.
