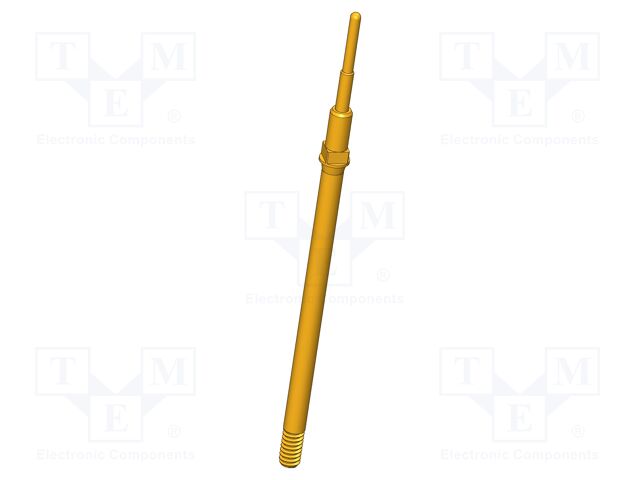

GKS-112 305 080 A 2205 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 0.8mm
Current rating: 8A
Contact material: CuBe
Contact plating: gold-plated
Operating temperature: -40...80°C
Type of test accessories: test needle
Tip diameter: 0.8mm
Operational spring compression: 4mm
Maksimum spring compression: 8mm
Length: 38.8mm
Max. contact resistance:: 20mΩ
Spring compression force: 2.25N
Manufacturer series: GKS-112
Blade tip shape: round
Test accessories features: magnetic
Mounting: screw-in
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 305 080 A 2205 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 0.8mm, Current rating: 8A, Contact material: CuBe, Contact plating: gold-plated, Operating temperature: -40...80°C, Type of test accessories: test needle, Tip diameter: 0.8mm, Operational spring compression: 4mm, Maksimum spring compression: 8mm, Length: 38.8mm, Max. contact resistance:: 20mΩ, Spring compression force: 2.25N, Manufacturer series: GKS-112, Blade tip shape: round, Test accessories features: magnetic, Mounting: screw-in, Anzahl je Verpackung: 1 Stücke.
