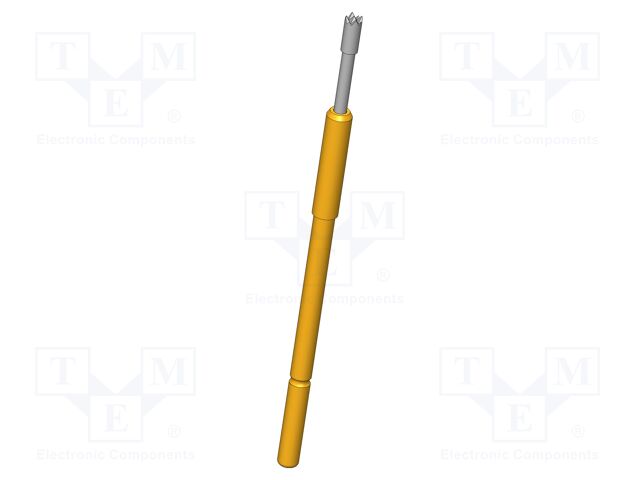

GKS-112 306 130 R 3009 C

GKS-112 306 130 R 3009 C INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09EEAA520A0D6&compId=GKS-112-2809.pdf?ci_sign=970a26069666978e98353a223603c81cc0eeea86 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.3mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 8A
Contact plating: rhodium plated
Contact material: CuBe
Blade tip shape: serrated
Tip diameter: 1.3mm
Manufacturer series: GKS-112
Operating temperature: -100...200°C
Mounting: push-in
Test accessories features: magnetic
Length: 39.3mm
Spring compression force: 3N
Max. contact resistance:: 100mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 306 130 R 3009 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.3mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 8A, Contact plating: rhodium plated, Contact material: CuBe, Blade tip shape: serrated, Tip diameter: 1.3mm, Manufacturer series: GKS-112, Operating temperature: -100...200°C, Mounting: push-in, Test accessories features: magnetic, Length: 39.3mm, Spring compression force: 3N, Max. contact resistance:: 100mΩ, Anzahl je Verpackung: 1 Stücke.
