GKS-112 306 150 R 1502 MC

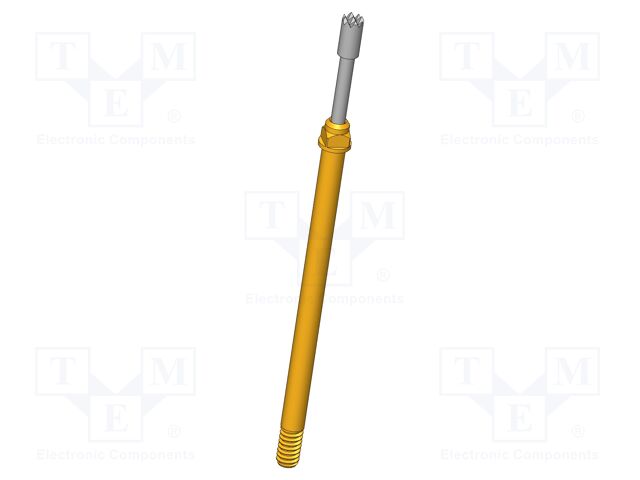

GKS-112 306 150 R 1502 MC INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A08C8BB41000D6&compId=GKS-112-1622.pdf?ci_sign=eb5a7c3dfd506ec8c348234d2f7fc9a1bd9d65b5 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm; 1.5N
Manufacturer series: GKS-112
Length: 35.8mm
Contact material: CuBe
Blade tip shape: serrated
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 2mm
Test accessories features: magnetic
Spring compression force: 1.5N
Mounting: screw-in
Contact plating: rhodium plated
Max. contact resistance:: 100mΩ
Operating temperature: -100...200°C
Current rating: 8A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 306 150 R 1502 MC INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm; 1.5N, Manufacturer series: GKS-112, Length: 35.8mm, Contact material: CuBe, Blade tip shape: serrated, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 2mm, Test accessories features: magnetic, Spring compression force: 1.5N, Mounting: screw-in, Contact plating: rhodium plated, Max. contact resistance:: 100mΩ, Operating temperature: -100...200°C, Current rating: 8A, Anzahl je Verpackung: 1 Stücke.
