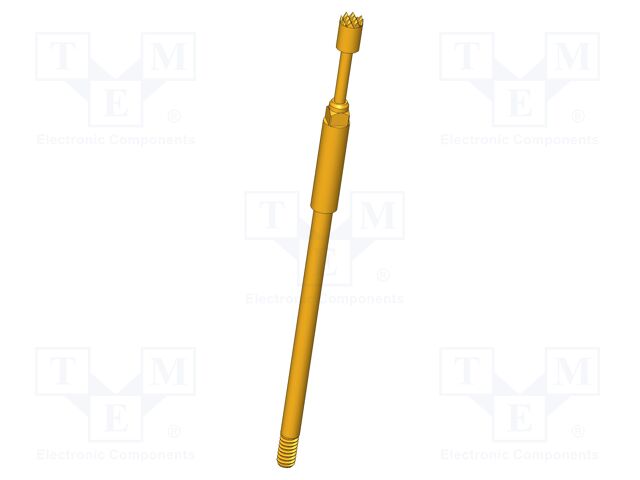

GKS-112 306 200 A 5010 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm; 5N
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 8A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: serrated
Tip diameter: 2mm
Manufacturer series: GKS-112
Operating temperature: -40...80°C
Mounting: screw-in
Length: 44.3mm
Spring compression force: 5N
Test accessories features: magnetic
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 306 200 A 5010 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 2mm; 5N, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 8A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: serrated, Tip diameter: 2mm, Manufacturer series: GKS-112, Operating temperature: -40...80°C, Mounting: screw-in, Length: 44.3mm, Spring compression force: 5N, Test accessories features: magnetic, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.
