Produkte > INGUN > GKS-112 319 180 A 1506 C
GKS-112 319 180 A 1506 C

GKS-112 319 180 A 1506 C INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09B9AAFD160D6&compId=GKS-112-2569.pdf?ci_sign=a1cb02fdc66244853cacb6d596d757befe8395b6 Hersteller: INGUN
Category: Contact Probes

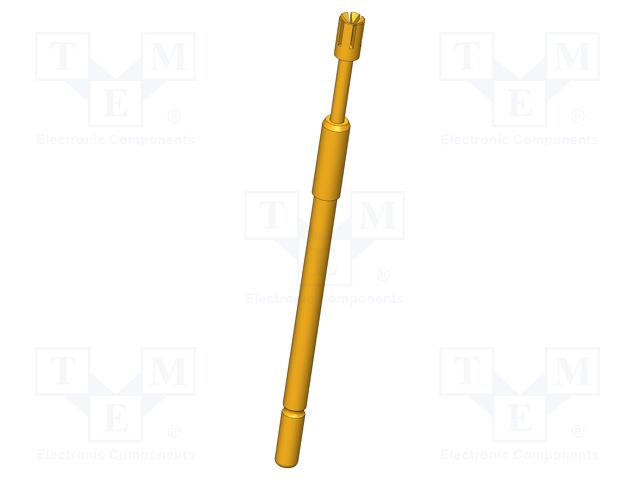

Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm
Manufacturer series: GKS-112
Contact material: CuBe
Blade tip shape: cone; inverted; slotted
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 1.8mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 36.3mm
Max. contact resistance:: 100mΩ
Current rating: 8A
Spring compression force: 1.5N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 319 180 A 1506 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm, Manufacturer series: GKS-112, Contact material: CuBe, Blade tip shape: cone; inverted; slotted, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 1.8mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 36.3mm, Max. contact resistance:: 100mΩ, Current rating: 8A, Spring compression force: 1.5N, Anzahl je Verpackung: 1 Stücke.
